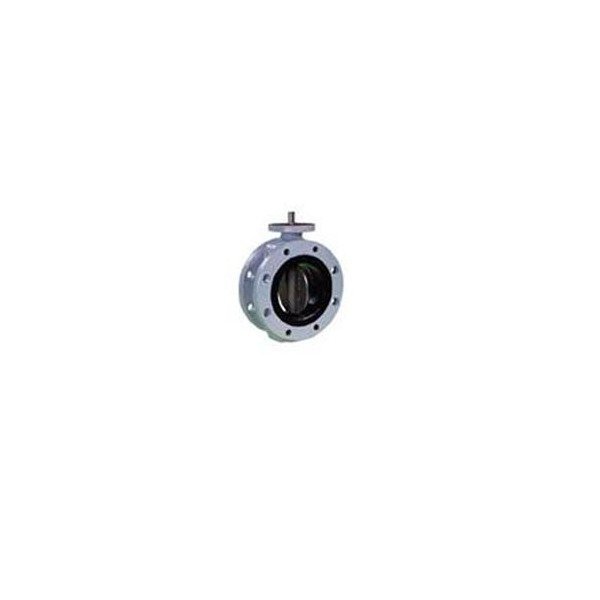

Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
SKU:VAL-dea4db
Highly reliable Tomoe Shipside Butterfly Valves for marine applications, offering exceptional durability and low maintenance.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
$2,899.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe Series 720F Shipside Butterfly Valves with Double Flanged Body in larger sizes are engineered for maximum reliability and durability, meeting the rigorous demands of marine environments. Designed to provide bubble-tight closure and exceptional long life, these valves are globally approved for marine applications. With features like easy seat and disc replacement, robust construction from cast steel, and leakage prevention mechanisms, they ensure low-cost maintenance and extended service life.
Product Specifications
Dimensional Information A1
10 mm
Dimensional Information A2
100 mm
Dimensional Information A3
10 mm
Dimensional Information A4
120 mm
Dimensional Information A Min Internal Diameters Of Piping
1138 mm
Dimensional Information B
24 mm
Dimensional Information Bh
23 mm
Dimensional Information C1
280 mm
Dimensional Information D
1465 mm
Dimensional Information D1
320 mm
Dimensional Information D2
95 mm
Dimensional Information H1
948 mm
Dimensional Information H2
880 mm
Dimensional Information L
300 mm
Dimensional Information L1
225 mm
Dimensional Information N
8 mm
Dimensional Information T
45 mm
Flange Information Applicable Flange Standard
JIS 10K( JIS 5K, ANSI 125Lb/150Lb, PN10)
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
84 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
78 mm
Flange Information Jis 10k Hexagon Bolts
M36
Flange Information Jis 10k Hexagon Boltsnuts
M36
Flange Information Jis 10k Hexagon Boltsnuts Length
150 mm
Flange Information Jis 10k Hexagon Bolts Length
110 mm
Flange Information Jis 10k Number Of Hexagon Bolts
16
Flange Information Jis 10k Number Of Hexagon Boltsnuts
48
Specifications Actuators
Electric Motor | Hydraulic Motor | Pneumatic Motor
Specifications Body Material
Cast Steel, JIS SCPH2
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Disc Material
SCS13(304SS)
Specifications Maxworking Pressure
1.0 MPa
Specifications Painting
Epoxy primer finish (Munsell N7)
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
1200 - 48"
Specifications Stem Material
SUS 403
Specifications Working Temperature Range
EPDM: -20 to 120°C | NBR: -10 to 80°C
