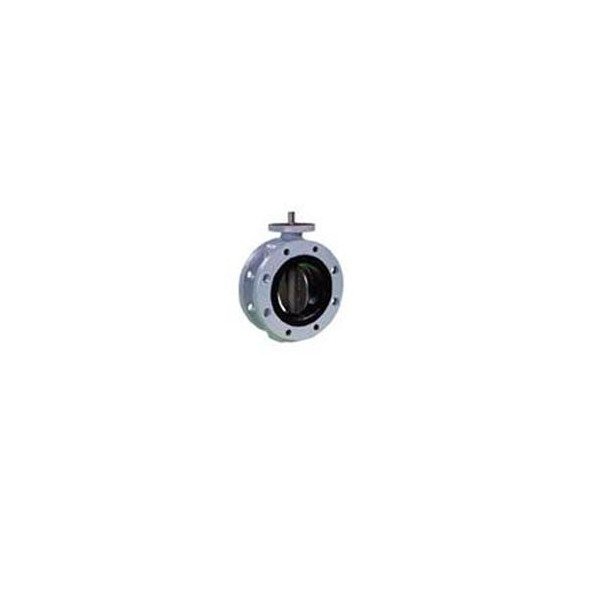

Tomoe Series 720F Shipside Butterfly Valves (Larger Sizes)
Tomoe Series 720F Shipside Butterfly Valves (Larger Sizes)
SKU:VAL-8a57da
Experience unmatched durability & reliability with Tomoe Series 720F Shipside Butterfly Valves! Marine-approved, leak-tight design for low-cost maintenance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Tomoe Series 720F Shipside Butterfly Valves (Larger Sizes)
$1,899.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 720F Shipside Butterfly Valves (Larger Sizes)
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe Series 720F Shipside Butterfly Valves with Double Flanged Body in larger sizes offer unmatched durability and reliability for marine applications. Engineered to international standards and boasting worldwide marine approvals, these valves ensure long-term leak tightness and bubble-tight closure. With a replaceable seat and disc for cost-effective maintenance, these valves are suitable for extended journeys and quick turnarounds. Choose from various seat and disc materials, including EPDM and NBR, to meet diverse operational requirements.
Product Specifications
Dimensional Information A1
10 mm
Dimensional Information A2
100 mm
Dimensional Information A3
10 mm
Dimensional Information A4
120 mm
Dimensional Information A Min Internal Diameters Of Piping
950 mm
Dimensional Information B
24 mm
Dimensional Information Bh
23 mm
Dimensional Information C1
280 mm
Dimensional Information D
1235 mm
Dimensional Information D1
320 mm
Dimensional Information D2
95 mm
Dimensional Information H1
819 mm
Dimensional Information H2
745 mm
Dimensional Information L
250 mm
Dimensional Information L1
210 mm
Dimensional Information N
8 mm
Dimensional Information T
45 mm
Flange Information Applicable Flange Standard
JIS 10K( JIS 5K, ANSI 125Lb/150Lb, PN10)
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
84 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
78 mm
Flange Information Jis 10k Hexagon Bolts
M36
Flange Information Jis 10k Hexagon Boltsnuts
M36
Flange Information Jis 10k Hexagon Boltsnuts Length
145 mm
Flange Information Jis 10k Hexagon Bolts Length
110 mm
Flange Information Jis 10k Number Of Hexagon Bolts
16
Flange Information Jis 10k Number Of Hexagon Boltsnuts
40
Specifications Actuators
Electric Motor | Hydraulic Motor | Pneumatic Motor
Specifications Body Material
Cast Steel, JIS SCPH2
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Disc Material
SCS13(304SS)
Specifications Maxworking Pressure
1.0 MPa
Specifications Painting
Epoxy primer finish (Munsell N7)
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
1000 - 40"
Specifications Stem Material
SUS 403
Specifications Working Temperature Range
EPDM: -20 to 120°C | NBR: -10 to 80°C
