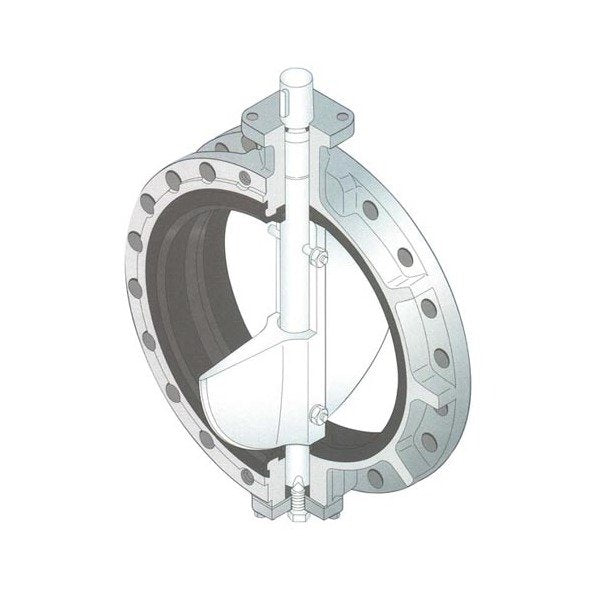

Tomoe Series 722F Shipside Butterfly Valve
Tomoe Series 722F Shipside Butterfly Valve
SKU:VAL-7c2d84
Reliable and durable Tomoe shipside butterfly valve for maritime applications, offering long-term leak tightness and easy maintenance.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Tomoe Series 722F Shipside Butterfly Valve
$599.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 722F Shipside Butterfly Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe Series 722F Shipside Butterfly Valve with Double Flanged Body is engineered to deliver exceptional performance in marine environments. Designed to international standards and approved for global marine applications, this valve ensures long-term leak tightness with precision spindle sealing and seat design. With replaceable seats and discs for easy maintenance, this valve guarantees reliability and compliance with the most demanding marine standards.
Product Specifications
Dimensional Information A1
5 mm
Dimensional Information A2
30 mm
Dimensional Information A3
35 mm
Dimensional Information A Min Internal Diameters Of Piping
227 mm
Dimensional Information Bh
11 mm
Dimensional Information C1
102 mm
Dimensional Information D
400 mm
Dimensional Information D1
102 mm
Dimensional Information D2
30 mm
Dimensional Information H1
221 mm
Dimensional Information H2
250 mm
Dimensional Information L
110 mm
Dimensional Information Re
24 mm
Dimensional Information S1
24 mm
Dimensional Information T
14 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U7/8
Flange Information Ansi 125lb150lb Hexagon Boltsnuts
U7/8
Flange Information Ansi 125lb150lb Hexagon Boltsnuts Length
80 mm
Flange Information Ansi 125lb150lb Hexagon Bolts Length
60 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Hexagon Boltsnuts
16
Flange Information Applicable Flange Standard
JIS 10K( JIS 5K, ANSI 125Lb/150Lb, PN10)
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
42 mm
Flange Information Jis 10k Hexagon Bolts
M22
Flange Information Jis 10k Hexagon Boltsnuts
M22
Flange Information Jis 10k Hexagon Boltsnuts Length
75 mm
Flange Information Jis 10k Hexagon Bolts Length
50 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
16
Specifications Actuators
Center Handle | Electric Motor | Extension Stem / Shaft | Hydraulic Motor | Pneumatic Motor | Worm Gear
Specifications Body Material
Cast Steel, JIS SCPH2
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Disc Material
SCS13(304SS)
Specifications Maxworking Pressure
1.0 MPa
Specifications Painting
Epoxy primer finish (Munsell N7)
Specifications Seat Material
EPDM | NBR
Specifications Size
250 - 10"
Specifications Stem Material
SUS 403
