Achieve precision balancing with ease using Tooldyne Balancing Machines for Machine Tools and Tool Holders by SCHENCK.

$8,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Tooldyne Balancing Machine by SCHENCK is a compact, force-measuring vertical balancer designed for precision balancing of machine tools and tool holders. With a quick and uncomplicated start-up, this machine offers the highest measuring accuracy, with features like a pneumatically actuated quick-clamping system for reproducible tool seating. It boasts a space-saving monoblock design with an integrated measuring station and device, ensuring ease of operation without the need for calibration runs. Perfect for institutions demanding greater speeds and higher accuracy, the Tooldyne SV meets the quality standards needed for fine balancing in modern processing technology.

Product Specifications

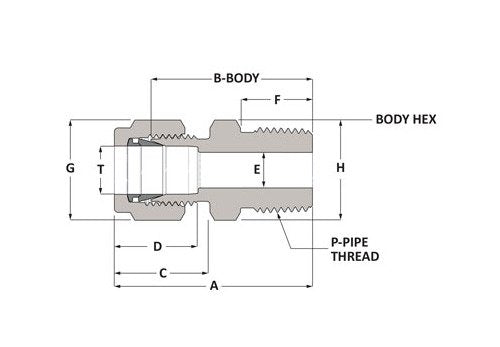

Dimensions A

31.2 mm

Dimensions B

24.6 mm

Dimensions C

16.1 mm

Dimensions D

13.7 mm

Dimensions E

2.4 mm

Dimensions F

9.7 mm

Dimensions G

12 mm

Dimensions H

12 mm

Dimensions P

1/8 in

Dimensions T

4 mm

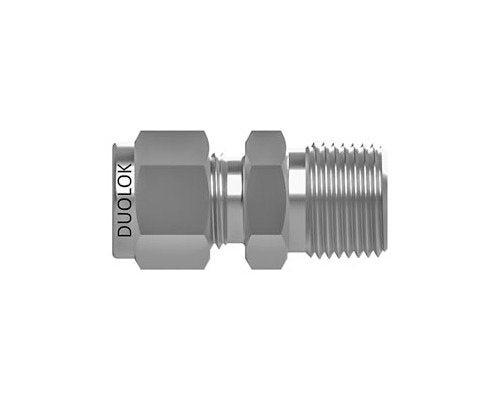

Specifications Body Material

316 SS

Specifications Brand Series

Duolok

Specifications Connection 1 Size

4 mm

Specifications Connection 1 Type

Tube Fitting

Specifications Connection 2 Size

1/8 in

Specifications Connection 2 Type

MNPT

Specifications End Connections

TF x MNPT

Specifications Handle Color

Specifications Handle Type

Specifications Production Category

Specifications Shape

Straight

Category 6

Duolok® Tube Fittings
