Protect tools from metal debris with the ToolGuard Fluid Line Filter. Durable, maintenance-free, and efficient.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
ToolGuard Magnetized Fluid Line Filter
$199.99
Quantity: 1
Claim Your Seller Account
ToolGuard Magnetized Fluid Line Filter
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

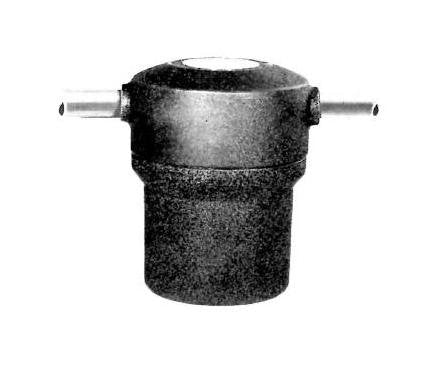

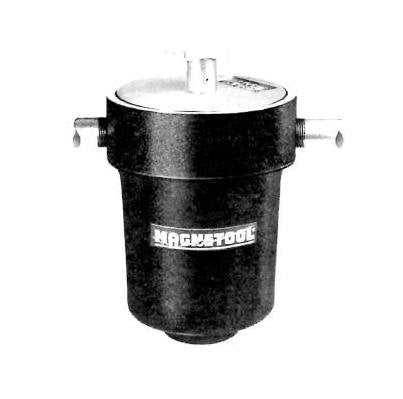

The ToolGuard Magnetized Fluid Line Filter is a cutting-edge solution designed to protect your tools and workpieces from ferrous metal chips and debris that contaminate coolant systems during machining operations. With a durable stainless steel cleaning sleeve assembly and high-quality Alnico magnets, this filter ensures minimal tool damage, reducing downtime and maximizing work hours between reconditions. Its easy maintenance process guarantees hassle-free operation, making it a reliable choice for maintaining machining efficiency.
Product Specifications
Additional Information 0
Alnico magnet material is standard. Neodymium magnet material is available for fine tramp iron (less than 35 microns) and weakly magnetic contamination.
Manufacturing Notes 0
Standard Pipe Thread Size: Use reducers for other pipe sizes
Specifications Applications

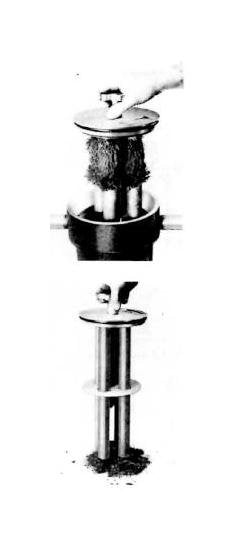

Trap the iron that damages your tools. | To clean, remove outer case, exposing cleaning sleeve. | Slide cleaning sleeve assembly down until clear of magnets. Trapped parts fall off.
Specifications Capacity
5 gpm | 16 gpm | 25 gpm
Specifications Housing Material
Aluminum
Specifications Magnet Material
Alnico
Specifications Maximum Pressure
100 psi
Specifications Net Weight
20 lb
Specifications Pipe Size
1/2 in | 3/4 in | 1 in
Specifications Standard Pipe Thread Size
1 in NPT
