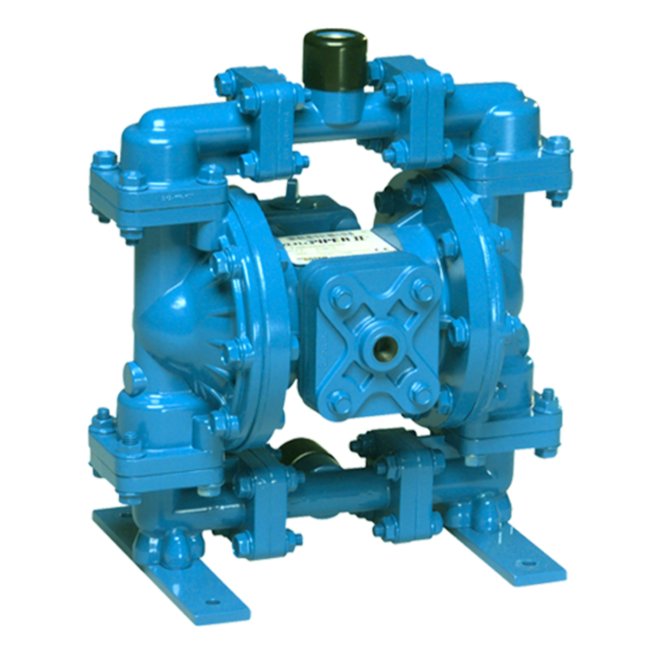

The S05 Metallic Ball Valve Diaphragm Pump is engineered for intermittent/on-demand applications, handling moderately abrasive fluids with suspended solids. Featuring TPE and PTFE options for diaphragms and check valves, this pump ensures durable and efficient performance. With a stainless steel wetted M.O.C., Viton/PTFE elastomers, and PTFE check valve seat, it meets rigorous industry standards for reliability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

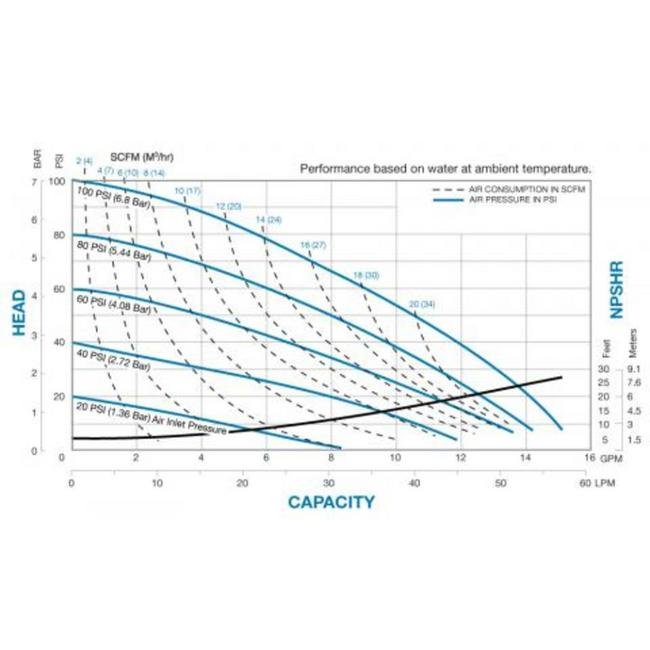

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Viton®/PTFE
Specifications Height
11 in | 267.72 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Intake Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Length
12 in | 292.10 mm
Specifications Max Flow Rate
0 - 15 gpm | 0 - 56 lpm
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS05B1SCTANS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
21 lbs | 10 kg
Specifications Wetted Moc
Stainless Steel
Specifications Width
7 in | 185.74 mm
