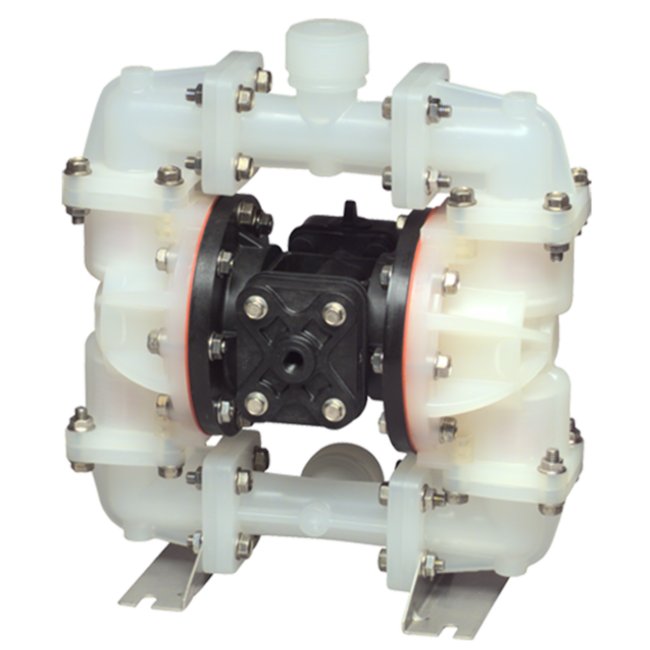

The S07 Top Discharge Non-Metallic Ball Valve Diaphragm Pump is a durable and corrosion-resistant solution for handling highly corrosive fluids with intermittent/on-demand requirements. Designed with TPE and PTFE diaphragms and check valves, this pump is ideal for portable applications dealing with low abrasive fluids and suspended solids. With a double diaphragm design and polypropylene construction, it ensures reliability and longevity in various industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

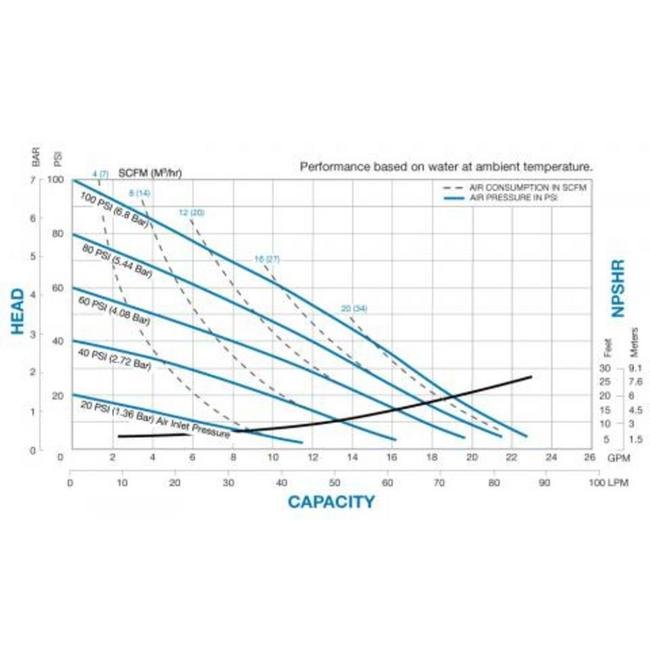

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup/Virgin PTFE
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
BSP Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07B1P2PPBS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
17 lbs | 8 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 179.39 mm
