Top Mount Marine Hinge - 304L Stainless Steel MMHTM1018
Top Mount Marine Hinge - 304L Stainless Steel MMHTM1018
SKU:HIN-e04479
Premium 304L stainless steel marine hinge with top mount design, Electro-Polish finish, and anti-corrosion properties.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Top Mount Marine Hinge - 304L Stainless Steel MMHTM1018
$29.99
Quantity: 1
Claim Your Seller Account
Top Mount Marine Hinge - 304L Stainless Steel MMHTM1018
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

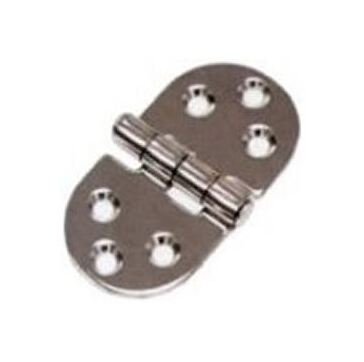

The Marine Hinge MMHTM1018 is a top-of-the-line solution crafted from 304L stainless steel with an Electro-Polish finish for superior anti-corrosion properties. This top mount swage marine hinge features precise dimensions including a length of 2.88 inches, a width of 1.50 inches, and a robust 2.50mm thickness. Designed with a countersink hole type and #8 hole size, this hinge ensures secure installation. Compliant with industry standards, this hinge is ideal for marine applications where durability and reliability are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A Length In
2.88
Specifications B Width In
1.50
Specifications Country Of Origin
-
Specifications C Pin Center To Leaf Edge In
1.50
Specifications D Height In
0.38
Specifications Height Max Width In
0.38
Specifications Height Max Width In Inch
0.38
Specifications Hole Size
#8
Specifications Hole Type
Countersink
Specifications Length In Inch
2.88
Specifications Length Of Right Leaf In Inch
1.50
Specifications Material
304 L
Specifications Product Guides
Hinge's Guides
Specifications Thickness Mm
2.50
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Width In Inch
1.50
