Top Mount Marine Hinge - 304L Stainless Steel MMHTM1020
Top Mount Marine Hinge - 304L Stainless Steel MMHTM1020
SKU:HIN-51880d
Premium 304L stainless steel top mount marine hinge with anti-corrosion finish and utility hinge design. Ideal for marine applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Top Mount Marine Hinge - 304L Stainless Steel MMHTM1020
$34.99
Quantity: 1
Claim Your Seller Account
Top Mount Marine Hinge - 304L Stainless Steel MMHTM1020
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

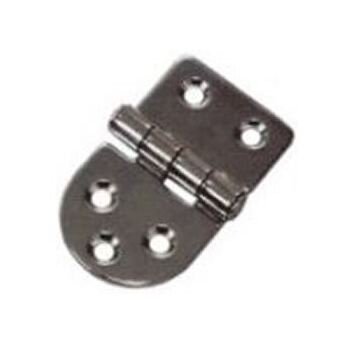

The Marine Hinge MMHTM1020 is precision-crafted from high-grade 304L stainless steel using an Electro-Polish (EP) procedure for superior anti-corrosion protection. Designed as a top mount swage marine hinge, it features rounded shortsided utility hinge aesthetics offering both functionality and durability. With a compact design of 2.63" length, 1.50" width, and 0.38" height, this hinge ensures secure and reliable installation for marine applications.
Product Specifications
Specifications A Length In
2.63
Specifications B Width In
1.50
Specifications Country Of Origin
-
Specifications C Pin Center To Leaf Edge In
1.13
Specifications D Height In
0.38
Specifications Height Max Width In
0.38
Specifications Height Max Width In Inch
0.38
Specifications Hole Size
#8
Specifications Hole Type
Countersink
Specifications Length In Inch
2.63
Specifications Length Of Right Leaf In Inch
1.50
Specifications Material
304 L
Specifications Product Guides
Hinge's Guides
Specifications Thickness Mm
2.00
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Width In Inch
1.50
