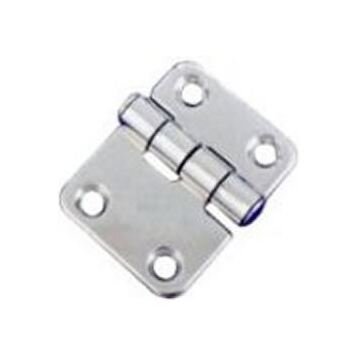

Top Mount Marine Hinge MMHTM1003 - 304L Electro-Polished Swage Hinge
Top Mount Marine Hinge MMHTM1003 - 304L Electro-Polished Swage Hinge
SKU:HIN-f8d53e
Durable 304L Marine Hinge with Electro-Polished finish. Ideal for marine cabinets and doors. Corrosion-resistant and precision-engineered for long-lasting performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Top Mount Marine Hinge MMHTM1003 - 304L Electro-Polished Swage Hinge
$24.99
Quantity: 1
Claim Your Seller Account
Top Mount Marine Hinge MMHTM1003 - 304L Electro-Polished Swage Hinge
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marine Hinge MMHTM1003 is a premium-grade top mount swage hinge specifically designed for marine applications. Crafted from durable 304L stainless steel with an Electro-Polish (EP) finish, this hinge offers exceptional resistance to corrosion in harsh marine environments. Featuring short-sided design for compact installations, it boasts precise dimensions with a pin center to leaf edge of 0.75 inches and a thickness of 2.00mm. Ideal for marine cabinets, hatches, and doors, this hinge ensures smooth operation and longevity. Compliant with industry standards for marine hardware, this hinge is a reliable choice for both consumer and institutional buyers.
Product Specifications
Specifications A Length In
1.88
Specifications B Width In
1.50
Specifications Country Of Origin
-
Specifications C Pin Center To Leaf Edge In
0.75
Specifications D Height In
0.38
Specifications Height Max Width In
0.38
Specifications Height Max Width In Inch
0.38
Specifications Hole Size
#8
Specifications Hole Type
Countersink
Specifications Length In Inch
1.88
Specifications Length Of Right Leaf In Inch
1.13
Specifications Material
304 L
Specifications Product Guides
Hinge's Guides
Specifications Thickness Mm
2.00
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Width In Inch
1.50
