Top Running Single Girder Motor Driven Cranes
Top Running Single Girder Motor Driven Cranes
SKU:REL-c66ee4
Reliable Model TSS Motorized Crane for heavy-duty lifting applications with 2-ton capacity, ideal for extreme indoor/outdoor use.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Top Running Single Girder Motor Driven Cranes
$5,499.99
Quantity: 1
Claim Your Seller Account
Top Running Single Girder Motor Driven Cranes
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

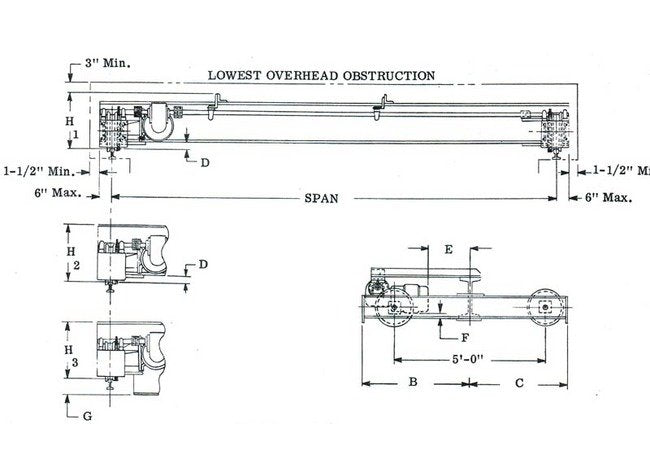

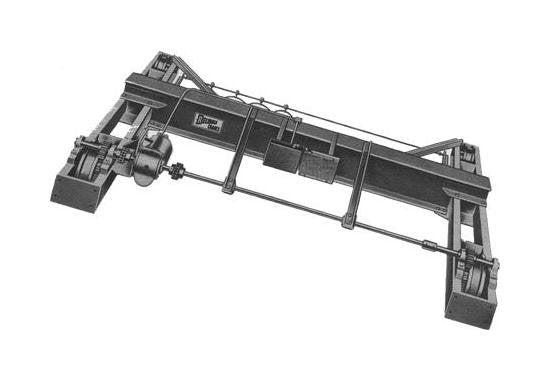

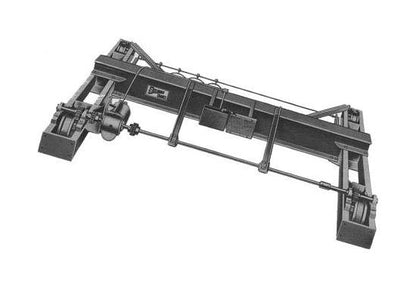

The Top Running Single Girder Motor Driven Cranes are designed for reliability and efficiency in heavy-duty lifting applications. Featuring a Model TSS Motorized Crane with a capacity of 2 Tons and a span of 17'-6", these cranes are equipped to handle extreme conditions both indoors and outdoors. With a sturdy S10 x 25.4 girder size and versatile dimensions, including H1 at 14 inches, H2 at 13 inches, B at 3'-2", and C at 3'-0", these cranes offer exceptional stability and performance. The top running, single girder design, combined with motor-driven, push-type operation, ensures seamless operation for various lifting needs. Additionally, compliance with industry-specific certifications and standards, including GSA requirements and FAR compliance, further enhances their suitability for institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
1765 lbs.
Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension H1
14 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S10 x 25.4
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
17'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
2770 lbs.
