Top Running Single Girder Motor Driven Cranes - Model TSS 1 Ton
Top Running Single Girder Motor Driven Cranes - Model TSS 1 Ton
SKU:REL-5c9013
Get the reliable Model TSS 1 Ton Top Running Single Girder Motor Driven Cranes for superior stability & performance in extreme indoor/outdoor conditions.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Top Running Single Girder Motor Driven Cranes - Model TSS 1 Ton
$5,999.99
Quantity: 1
Claim Your Seller Account
Top Running Single Girder Motor Driven Cranes - Model TSS 1 Ton
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

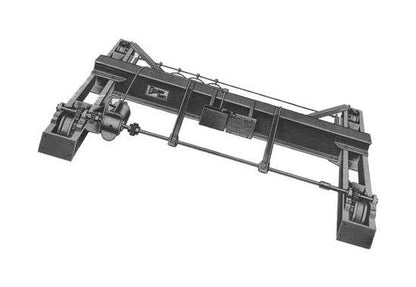

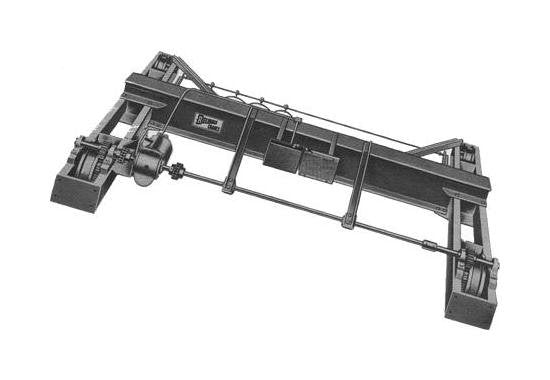

The Top Running Single Girder Motor Driven Cranes, Model TSS 1 Ton, are designed for extreme conditions with a capacity of 1 ton and a span of 27'-6". Featuring a sturdy S12 x 31.8 girder size, these cranes offer superior stability with channel-capped beams. With dimensions tailored for efficiency, they ensure optimal performance both indoors and outdoors. Equipped with reliable motorized operations and top-running functionality, these cranes are versatile for various applications.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
1 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2280 lbs.

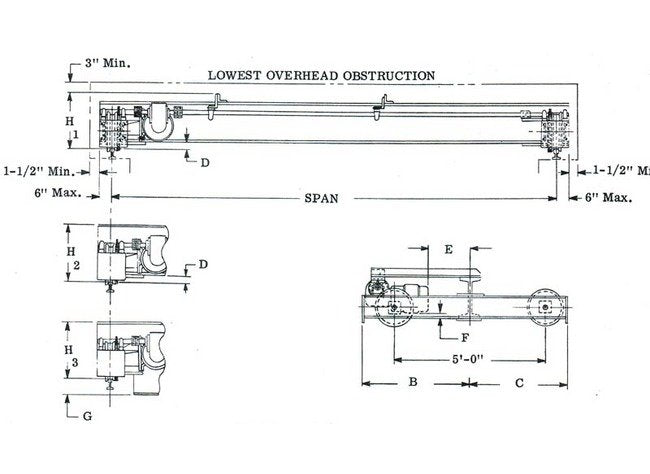

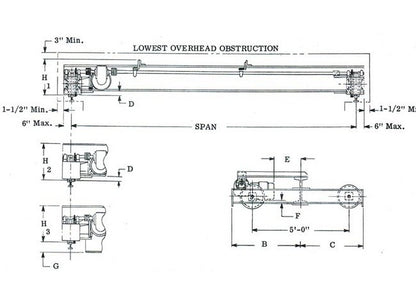

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension H1
16 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S12 x 31.8
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
27'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
1770 lbs.
