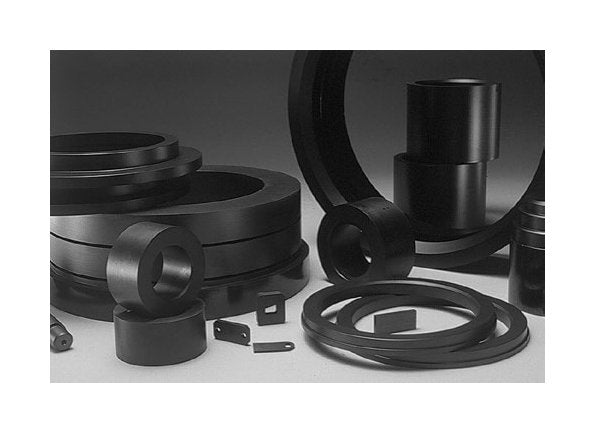

Torlon 4203 PAI Sheet - High Performance Polyamide-imide Material
Torlon 4203 PAI Sheet - High Performance Polyamide-imide Material
SKU:SHA-769893
Premium Torlon 4203 PAI Sheet with high tensile strength and superior heat resistance. Ideal for demanding applications.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Torlon 4203 PAI Sheet - High Performance Polyamide-imide Material
$239.99
Quantity: 1
Claim Your Seller Account
Torlon 4203 PAI Sheet - High Performance Polyamide-imide Material
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Torlon 4203 PAI Sheet is engineered to withstand extreme conditions, with characteristics such as minimal expansion rate up to 500°F, high tensile strength of 20000 psi, and a heat deflection temperature of 532°F. Ideal for high temperature electrical connectors and chip nests, this sheet offers exceptional stiffness and durability. Compliant with stringent industry standards, it provides reliability in challenging thermal, chemical, and stress environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
High temperature electrical connectors.Chip nests & sockets.Can mandrel
Characteristics Characteristics
Maintains strength & stiffness to 500ºF.Minimal expansion rate to 500ºF.Able to endure harsh thermal, chemical and stress conditions.
Specifications Availability
3-5 days
Specifications Coefficient Of Friction Static
0.35
Specifications Color
Brown/Yellow
Specifications Compressive Modulus
479000 psi
Specifications Compressive Strength
23900 psi
Specifications Dielectric Strength
580 V/mil
Specifications Flammability At 125 Ul94
V0
Specifications Flexural Modulus
600000 psi
Specifications Flexural Strength
23900 psi
Specifications Glass Transition Temperature
527 ºF
Specifications Hardness Rockwell
E80 / M120
Specifications Heat Deflection Temperature 264 Psi
532 ºF
Specifications Izod Impact Strength Notched Astm D256
2.0
Specifications Material
PAI
Specifications Minimum Order
1
Specifications Optional Sheet Size
12 x 48
Specifications Sheet Size
12 x 12 in
Specifications Specific Gravity
1.41
Specifications Tensile Elongation Break
10%
Specifications Tensile Modulus
600000 psi
Specifications Tensile Strength
20000 psi
Specifications Thickness
0.250 in
Specifications Tolerance
+only in
Specifications Water Absorption 24 Hrs
0.40 %
Specifications Water Absorption Saturation Astm D570
1.70
Specifications Weight
1.83 lb/ft²
