Toroidal Medical Transformer 250 VA Power VPM Series
Toroidal Medical Transformer 250 VA Power VPM Series
SKU:POW-590cde
High-quality Toroidal Medical Transformer for precise power distribution in medical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Toroidal Medical Transformer 250 VA Power VPM Series
$129.99
Quantity: 1
Claim Your Seller Account
Toroidal Medical Transformer 250 VA Power VPM Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

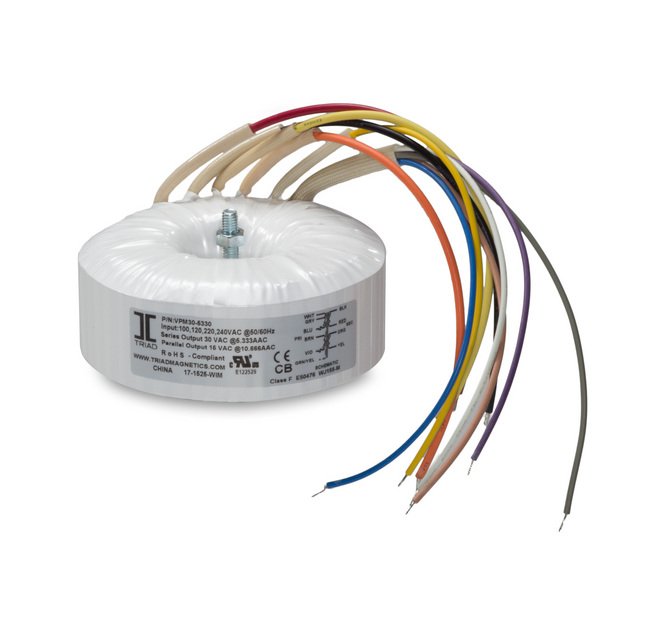

The Toroidal Medical Transformer 250 VA Power VPM Series is a reliable power solution designed for medical applications. With primary voltage options of 100, 120, 220, or 240 VAC at 50/60 Hz and secondary dual voltage for parallel or series connection, this transformer ensures efficient power distribution. It boasts low leakage current, low stray fields, and Class F insulation for safe operation at up to 155°C. Meeting industry standards such as CE and CRU®US, this transformer offers a secondary power of 250 VA with options for series or parallel connections.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
250 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
60 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
123 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical

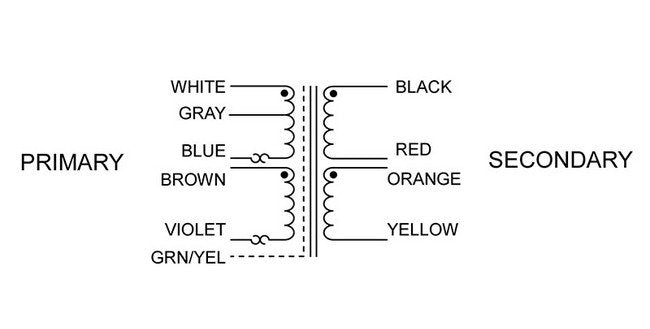

Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
250 V·A
Specifications Secondary Voltage In Parallel
120 V at 2.08 A
Specifications Secondary Voltage In Series
240 V CT at 1.04 A
Specifications Regulation
5.9 %
Specifications Temperature Rise
55 ºC
Specifications Weight
2.5 kg
