Torq Rotary Phase Converter Kit for 3 Phase Motors
Torq Rotary Phase Converter Kit for 3 Phase Motors
SKU:MOT-ad7b20
Effortlessly convert single-phase power to three-phase with Torq's reliable Rotary Phase Converter Kit for 4 pole 60 Hz motors.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Torq Rotary Phase Converter Kit for 3 Phase Motors
$349.99
Quantity: 1
Claim Your Seller Account
Torq Rotary Phase Converter Kit for 3 Phase Motors
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

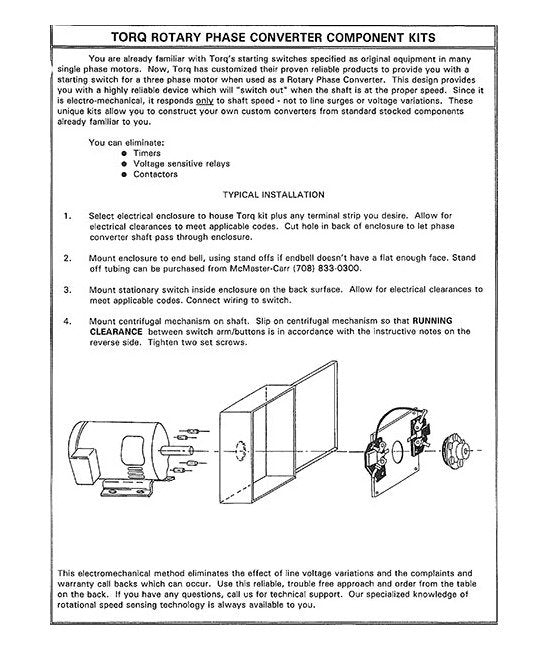

Upgrade your single-phase power supply to three-phase effortlessly with the Torq Rotary Phase Converter Kit. Engineered for 4 pole 60 Hz motors, this kit features a starting switch that responds to shaft speed, ensuring reliability. Customizable with stocked components, this converter kit offers optimal running clearance and precise performance. Construct your own custom converters with ease using the Torq Rotary Phase Converter Kit.
Product Specifications
Important Note 0
ATTENTION: PROPER RUNNING CLEARANCE IS IMPORTANT FOR OPTIMUM PERFORMANCE.Running clearance is the nominal distance between the centrifugal mechanism spool and the stationary switch buttons or switch arms when the centrifugal mechanism is at speed and retracted back from the switch. It should be measured when the mechanism is at rest by mechanically compressing the centrifugal mechanism spool to its backplate to simulate the running condition. The centrifugal mechanism is to be slipped on the shaft, proper running clearance established between spool and switch arms/buttons, and the centrifugal mechanism is to be attached to the shaft with two set screws.Standard mechanisms for 4 pole 60 hertz applications are stocked. Centrifugal mechanisms for other speeds (2, 6, or 8 pole - 60 hertz; or 2, 4, or 6 pole - 50 hertz) can be supplied as a special made to order.
Specifications Catalog Number
S-8027
Specifications Converter Motor Shaft Size
1 3/8 in
Specifications Kit Catalog Number
K-9927
Specifications Maximum Dimensions L X W
6 1/2 x 6 1/2 in
Specifications Motor Frequency
60 Hz
Specifications Plate Dimensions L X W
5 1/2 x 4 3/4 in
Specifications Poles
6
Specifications Running Clearance
0.12 in
Specifications Spool Outer Diameter
2.88
