Touchless Magnetic Rotary Position Sensors - RFC 4800 Series
Touchless Magnetic Rotary Position Sensors - RFC 4800 Series
SKU:RFC-271551
Cutting-edge touchless magnetic rotary sensors for precise angle measurement in any application.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Touchless Magnetic Rotary Position Sensors - RFC 4800 Series
$129.99
Quantity: 1
Claim Your Seller Account
Touchless Magnetic Rotary Position Sensors - RFC 4800 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

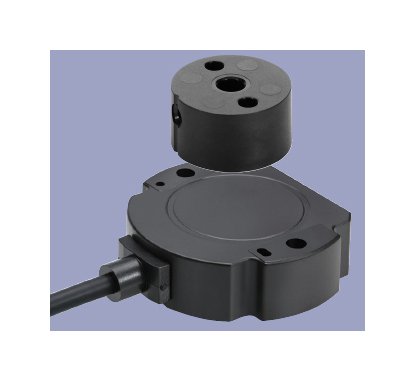

The RFC 4800 Series Digital Touchless Magnetic Rotary Position Sensors offer unparalleled precision and reliability for institutional and consumer applications. Featuring a permanent magnet design that eliminates mechanical wear, these sensors are available in sizes ranging from 13 to 90 mm to suit various needs. With single and redundant versions, programmable switch outputs, and IP69K sealing, these sensors ensure high performance and durability in challenging environments.
Product Specifications
Specifications Coding
Gray
Specifications Counts Per Revolution After Quadrature
4096
Specifications Dc Supply Voltage Ub
5 V | 24 V
Specifications Electrical Connection
432: Cable 8-pol, 1.0 m, shielded | 436: Cable 8-pol, 3.0 m, shielded | 440: Cable 8-pol, 5.0 m, shielded | 450: Cable 8-pol, 10.0 m, shielded | 531: Connector M12x1 8-pol with cable, L = 0.15 m, shielded
Specifications Emc Compatibility
EN 55016-2-3 Noise radiation class B | EN 61000-4-2 electrostatic discharge (ESD) 4 kV, 8 kV | EN 61000-4-3 electromagnetic fields 10 V/m | EN 61000-4-4 electrical fast transients (burst) 1 kV | EN 61000-4-6 l conducted disturbances, induced by RF fields 10 V eff. | EN 61000-4-8 Power frequency magnetic fields 30 A/m
Specifications Functional Safety
If you need assistance in using our products in safety-related systems, please contact us
Specifications High Speed Mode Minimal Edge Separation 05 S
24 V (18 to 30 V) supply voltage, output HTL-compatible, Push-Pull | 24 V (18 to 30 V) supply voltage, output RS422, TTL-compatible | 5 V (4.5 to 5.5 V) supply voltage, output RS422, TTL-compatible | Absolute position at Power On (Power on Burst) on request | UVW signals instead of ABZ signals for motor commutation on request
Specifications Hysteresis
0.7 º
Specifications Incremental Open Collector
252: Cable 4-pol., 1 m, unshielded | 256: Cable 4-pol., 3 m, unshielded | 260: Cable 4-pol., 5 m, unshielded | 270: Cable 4-pol., 10 m, unshielded | 302: Cable 5-pol. 1.0 m, shielded | 411: Lead wires 4 x L = 0.5 m | 551: Connector M12x1 4-pin with cable, L = 0.15 m, unshielded SPI | Cable versions and and assembled connectors on request
Specifications Inputs
RS422 compatible, CLK lines via optocoupler galvanically isolated
Specifications Insulation Resistance 500 Vdc
= 10
Specifications Interface
2: digital Interface
Specifications Interface Parameters For Incremental Interface
12/24V (9 to 34 V) supply voltage, output low side, open collector | 24V (18 to 30 V) supply voltage, output HTL-compatible, Push-Pull | 24V (18 to 30 V) supply voltage, output RS422, TTL-compatible | 5V (4.5 to 5.5 V) supply voltage, output RS422, TTL- compatible | Low Speed Mode (minimum edge separation 8 µs)
Specifications Interface Parameters For Spi Interface
5 V (4.5 to 5.5 V) Supply voltage, Binary code, rising cw

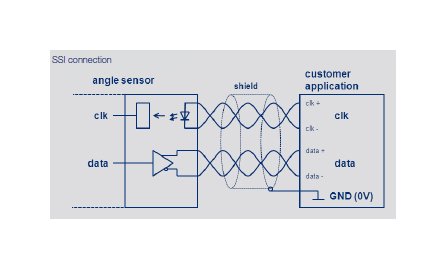

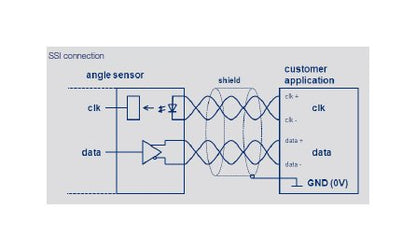

Specifications Interface Parameters For Ssi Interface
24 V (18 to 30 V) Supply voltage, output RS422 comp., Gray code rising ccw | 24 V (18 to 30 V) Supply voltage, output RS422 comp., Gray code, rising cw | 5 V (4.5 to 5.5 V) Supply voltage, output RS422 comp., Gray code rising ccw | 5 V (4.5 to 5.5 V) Supply voltage, output RS422 comp., Gray code, rising cw
Specifications Length Z Pulse
90 electrical, between 2 edges A / B
Specifications Level
HTL-compatible, Push-Pull | RS-422, TTL-compatible
Specifications Maximum Clock Rate
1 MO
Specifications Maximum Operational Speed Position Marker
30,000 min, higher speeds on request
Specifications Mean Time To Failure Mttf
101 Years | 141 Years
Specifications Measuring Range
360 º
Specifications Mechanical Version
4802: Round hole mounting | 4801: Elongated hole for easy adjustment
Specifications Monoflop Time Tm
16 µs
Specifications Ohmic Load At Outputs
= 120 O
Specifications Operating Temperature
-40 to 85 º C
Specifications Option High Speed For Minimum Edge Separation
0.5 µs
Specifications Option High Speed For Minimum Input Frequency Of
500 kHz
Specifications Option Low Speed For Minimum Edge Separation
8 µs
Specifications Option Low Speed For Minimum Input Frequency Of C
32 kHz
Specifications Outputs
A+ / A- | B+/ B- | Z+/ Z-
Specifications Protocol
SSI 13 bit (12 bit data + 1 stop bit)
Specifications Pulses Per Revolution
1024 ppr
Specifications Repeatability
0.2 º
Specifications Resolution Across 360
12 bits
Specifications Resolution Incremental Interface
09: 128 ppr - 512 counts (after quadrature) | 10: 256 ppr - 1024 counts (after quadrature) | 11: 512 ppr - 2048 counts (after quadrature) | 12: 1024 ppr - 4096 counts (after quadrature) | Other resolutions on request
Specifications Resolution Spi Interface
14: 14 bit
Specifications Resolution Ssi Interface
12: 12 bit | Other resolutions on request
Specifications Reverse Voltage
Yes, Supply lines
Specifications Short Circuit Protection
Yes (vs. GND and supply voltage)
Specifications Supply Voltage Ub Interface
4: Synchronous-Serial Interface (SSI) | 5: Incremental Inrface A / B / Z | 8: Serial Peripheral Interface (SPI)
