TPR 127.0mm Self-Piercing Rivet
TPR 127.0mm Self-Piercing Rivet
SKU:TPR-9f5d8e
High-strength TPR 127.0mm Self-Piercing Rivet for industrial applications, meets government standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
TPR 127.0mm Self-Piercing Rivet
$69.99
Quantity: 1
Claim Your Seller Account
TPR 127.0mm Self-Piercing Rivet
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

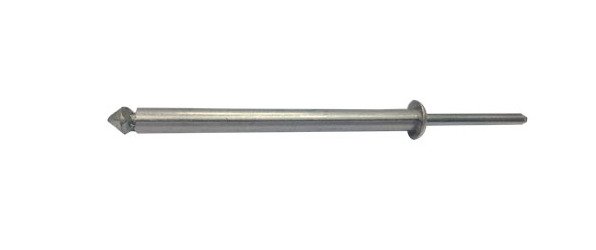

The TPR 127.0mm Self-Piercing Rivet is a high-quality fastening solution designed for industrial applications. Constructed from Aluminum Alloy with a Zinc Coated Chromium mandrel, it offers superior strength and durability. With a shear force of 250 kgf and a tensile force of 320 kgf, this rivet ensures secure and reliable connections. The rivet's precise dimensions and natural finish add to its appeal in various assembly projects, meeting stringent government procurement standards.
Product Specifications
Nominal Dimensions Body Length
127.0 mm | 5.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
108.0 mm | 4.252 in
Nominal Dimensions Minimum Grip Range
91.0 mm | 3.582 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
500
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
