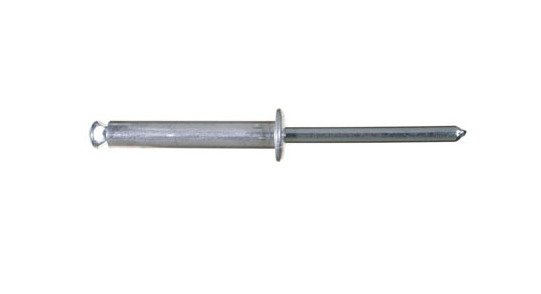

TPR 178.0mm Self-Piercing Rivet
TPR 178.0mm Self-Piercing Rivet
SKU:TPR-dad0b5
High-strength TPR 178.0mm Self-Piercing Rivet for industrial applications. Durable Aluminum Alloy body, Zinc Coated Chromium VI Free Carbon Steel mandrel. Nominal shear force: 250 kgf, tensile force: 320 kgf.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
TPR 178.0mm Self-Piercing Rivet
$59.99
Quantity: 1
Claim Your Seller Account
TPR 178.0mm Self-Piercing Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TPR 178.0mm Self-Piercing Rivet is a high-quality fastening solution designed for industrial applications. Manufactured with durable Aluminum Alloy (ALmg 3.0/5.0) body material and a Zinc Coated Chromium VI Free Carbon Steel mandrel, it offers exceptional strength and corrosion resistance. With a nominal shear force of 250 kgf and a tensile force of 320 kgf, this rivet ensures reliable performance in demanding environments. The 178.0mm body length and a grip range of 142.0mm to 159.0mm provide versatility for various fastening needs, making it ideal for institutions seeking robust and compliant fasteners.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
178.0 mm | 7.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
159.0 mm | 6.259 in
Nominal Dimensions Minimum Grip Range
142.0 mm | 5.590 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
250
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
