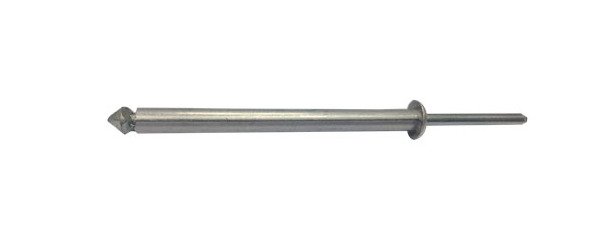

TPR 203.0mm Self-Piercing Rivet
TPR 203.0mm Self-Piercing Rivet
SKU:TPR-2f9432
High-strength TPR Self-Piercing Rivet for secure industrial joints. Aluminum Alloy body with Zinc Coated Chromium Mandrel.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TPR 203.0mm Self-Piercing Rivet
$49.99
Quantity: 1
Claim Your Seller Account
TPR 203.0mm Self-Piercing Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TPR 203.0mm Self-Piercing Rivet is a high-quality fastening solution suitable for a wide range of applications. Made from durable Aluminum Alloy with a Zinc Coated Chromium Mandrel, this rivet offers exceptional strength and corrosion resistance. With a Nominal Shear Force of 250 kgf and Nominal Tensile Force of 320 kgf, it ensures secure and reliable joint connections. The rivet's precise dimensions, including a Diameter of 6.4mm and Body Length of 203.0mm, make it ideal for industrial and construction projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
203.0 mm | 8.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
184.0 mm | 7.244 in
Nominal Dimensions Minimum Grip Range
167.0 mm | 6.574 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
250
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
