TPR 253.0mm Self-Piercing Rivet
TPR 253.0mm Self-Piercing Rivet
SKU:TPR-fd4c34
High-strength TPR 253.0mm Self-Piercing Rivet, ideal for secure fastening. Compliant with Federal/DoD procurement standards & FAR regulations.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
TPR 253.0mm Self-Piercing Rivet
$59.99
Quantity: 1
Claim Your Seller Account
TPR 253.0mm Self-Piercing Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

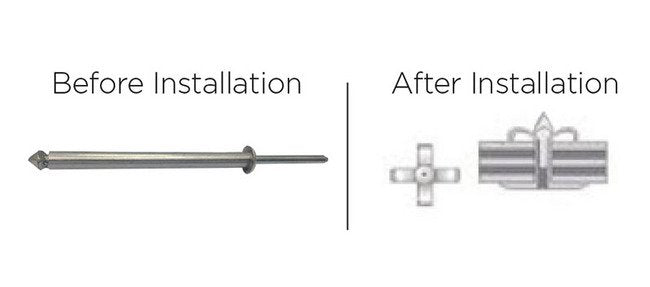

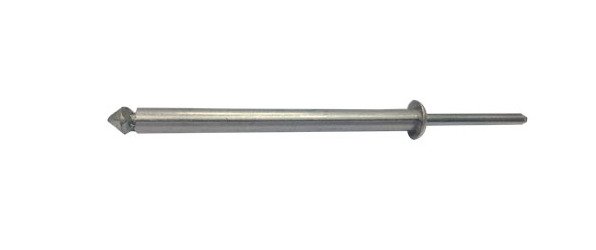

The TPR 253.0mm Self-Piercing Rivet is a high-strength fastening solution suitable for various applications. Constructed from Aluminum Alloy with a Zinc Coated Chromium Mandrel, it offers exceptional shear force of 250 kgf and tensile force of 320 kgf. Its 253.0mm body length and 6.4mm diameter make it ideal for secure fastening requirements. Compliant with Federal/DoD procurement standards and FAR regulations, this rivet ensures reliability and durability.
Product Specifications
Nominal Dimensions Body Length
253.0 mm | 10.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
235.0 mm | 9.252 in
Nominal Dimensions Minimum Grip Range
218.0 mm | 8.582 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
100
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
