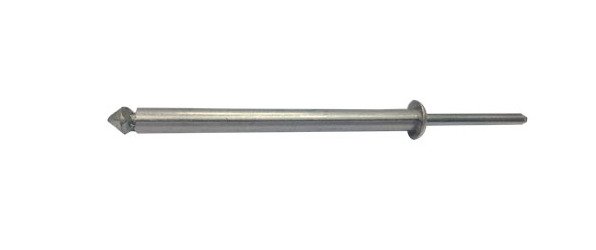

TPR 64.0mm Self-Piercing Rivet
TPR 64.0mm Self-Piercing Rivet
SKU:TPR-ce2a63
High-strength TPR Self-Piercing Rivet for secure fastening in diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TPR 64.0mm Self-Piercing Rivet
$49.99
Quantity: 1
Claim Your Seller Account
TPR 64.0mm Self-Piercing Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TPR 64.0mm Self-Piercing Rivet by Ornit is a high-quality fastening solution designed for durable and secure applications. Constructed from Aluminum Alloy, with a Zinc Coated Chromium Mandrel, this rivet offers exceptional reliability and strength. With a maximum grip range of 46.0mm and meeting stringent industry standards for force resistance, this rivet is ideal for both consumer and institutional use.
Product Specifications
Nominal Dimensions Body Length
64.0 mm | 2.5 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
46.0 mm | 1.811 in
Nominal Dimensions Minimum Grip Range
29.0 mm | 1.140 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
1000
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
