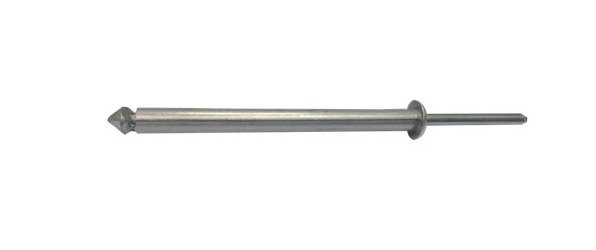

TPR 76.0mm Self-Piercing Aluminum Alloy Rivet

Name: TPR 76.0mm Self-Piercing Aluminum Alloy Rivet
Brand: Ornit USA
SKU: TPR-0a86ee
Price: 59.99 USD
Availability: OutOfStock

SKU:TPR-0a86ee

High-quality TPR 76.0mm self-piercing rivet for industrial applications, featuring aluminum alloy body and zinc-coated chromium VI free mandrel.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The TPR 76.0mm Self-Piercing Rivet is a high-quality fastening solution designed for industrial applications requiring precision and strength. Made from Aluminum Alloy ALmg 3.0/5.0 with a Zinc Coated Chromium VI Free Mandrel, it offers exceptional durability and corrosion resistance. With a nominal shear force of 250 kgf and a nominal tensile force of 320 kgf, this rivet ensures reliable performance under heavy loads. The rivet's dimensions, including a 6.4mm diameter, 76.0mm body length, and 12.0mm head diameter, meet stringent standards for secure and efficient fastening.

Product Specifications

Nominal Dimensions Body Length

76.0 mm | 3.0 in

Nominal Dimensions Diameter

6.4 mm | 1/4 in

Nominal Dimensions Drillhole Size

6.8 to 7.0 mm | 0.268 to 0.276 in

Nominal Dimensions Head Diameter

12.0 mm | 0.472 in

Nominal Dimensions Head Thickness

1.80 mm | 0.071 in

Nominal Dimensions Mandrel Diameter

3.6 mm | 0.142 in

Nominal Dimensions Maximum Grip Range

58.0 mm | 2.283 in

Nominal Dimensions Minimum Grip Range

41.0 mm | 1.614 in

Nominal Forces Nominal Shear Force

250 kgf | 551 lbf

Nominal Forces Nominal Tensile Force

320 kgf | 706 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy (ALmg 3.0/5.0)

Technical Specs Brands

Ornit | TPR

Technical Specs Carton Quantity

500

Technical Specs Mandrel Finish

Zinc Coated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Carbon Steel
