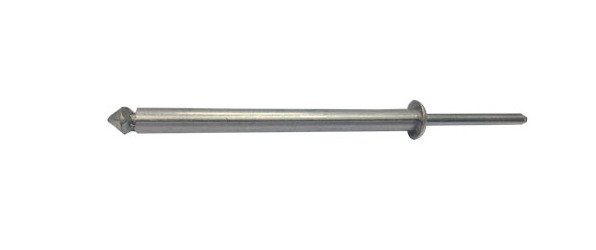

TPR 88.0mm Self-Piercing Rivet
TPR 88.0mm Self-Piercing Rivet
SKU:TPR-9ea737
Premium TPR 88.0mm Self-Piercing Rivet for secure and durable connections in industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
TPR 88.0mm Self-Piercing Rivet
$89.99
Quantity: 1
Claim Your Seller Account
TPR 88.0mm Self-Piercing Rivet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TPR 88.0mm Self-Piercing Rivet by Ornit | TPR is a high-quality fastening solution designed for industrial applications. Constructed with Aluminum Alloy and Carbon Steel components, this rivet offers superior strength with a Nominal Shear Force of 250 kgf and a Nominal Tensile Force of 320 kgf. With a natural finish, precise dimensions, and a grip range from 53.0mm to 70.0mm, this rivet ensures secure and durable connections. Perfect for automotive, aerospace, and construction uses, it meets stringent industry standards and is trusted for its reliability.
Product Specifications
Nominal Dimensions Body Length
88.0 mm | 3.5 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
70.0 mm | 2.755 in
Nominal Dimensions Minimum Grip Range
53.0 mm | 2.086 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
500
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
