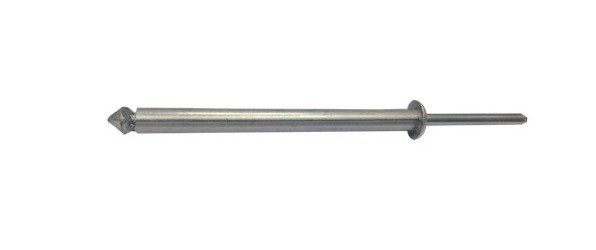

TPR Self-Piercing Rivet - 102.0mm Body Length, 500-Pack
TPR Self-Piercing Rivet - 102.0mm Body Length, 500-Pack
SKU:TPR-82b649
High-strength TPR Self-Piercing Rivet - 102.0mm Body Length, ideal for durable assemblies in various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
TPR Self-Piercing Rivet - 102.0mm Body Length, 500-Pack
$89.99
Quantity: 1
Claim Your Seller Account
TPR Self-Piercing Rivet - 102.0mm Body Length, 500-Pack
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TPR 102.0mm Body Length Self-Piercing Rivet, part of the TPR Self-Piercing Rivets line, offers exceptional strength and durability. Constructed with Aluminum Alloy (ALmg 3.0/5.0) body and Carbon Steel mandrel, featuring a natural finish. With a nominal shear force of 250 kgf (551 lbf) and nominal tensile force of 320 kgf (706 lbf), this rivet ensures reliable performance. The rivet's precise dimensions, including a 6.4mm diameter and a 102.0mm body length, meet institutional procurement standards for a wide range of applications.
Product Specifications
Nominal Dimensions Body Length
102.0 mm | 4.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
83.0 mm | 3.267 in
Nominal Dimensions Minimum Grip Range
66.0 mm | 2.598 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
500
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
