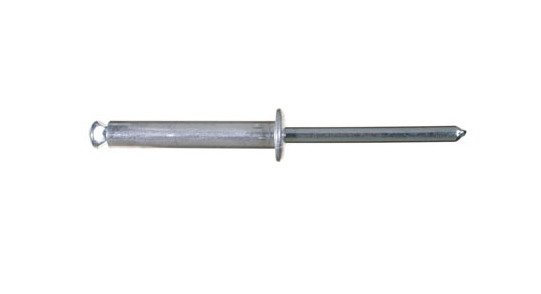

TPR Self-Piercing Rivet - 152.0mm Body Length, Aluminum Alloy
TPR Self-Piercing Rivet - 152.0mm Body Length, Aluminum Alloy
SKU:TPR-26b18d
High-quality TPR Self-Piercing Rivet - 152.0mm length, Aluminum Alloy, 250 kgf shear force, 320 kgf tensile force.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The TPR 152.0mm Body Length Self-Piercing Rivet is a high-quality fastening solution designed by Ornit with precision and durability in mind. Constructed from Aluminum Alloy (ALmg 3.0/5.0) body material and Zinc-Coated Chromium (Cr) VI Free mandrel material, this rivet offers exceptional shear force resistance of 250 kgf and tensile force of 320 kgf. With a head diameter of 12.0mm and a body length of 152.0mm, it provides a secure grip range from 116.0mm to 133.0mm, ensuring reliable performance in various applications. Ideal for industrial, automotive, and construction sectors, this self-piercing rivet meets stringent procurement standards and guarantees long-lasting strength and stability.
Product Specifications
Nominal Dimensions Body Length
152.0 mm | 6.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
133.0 mm | 5.236 in
Nominal Dimensions Minimum Grip Range
116.0 mm | 4.566 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
400
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
