TPR Self-Piercing Rivet - 228.0mm Body Length
TPR Self-Piercing Rivet - 228.0mm Body Length
SKU:TPR-1cfddf
Durable TPR Self-Piercing Rivet for industrial applications. Strong, reliable fastening meeting government standards.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
TPR Self-Piercing Rivet - 228.0mm Body Length
$79.99
Quantity: 1
Claim Your Seller Account
TPR Self-Piercing Rivet - 228.0mm Body Length
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

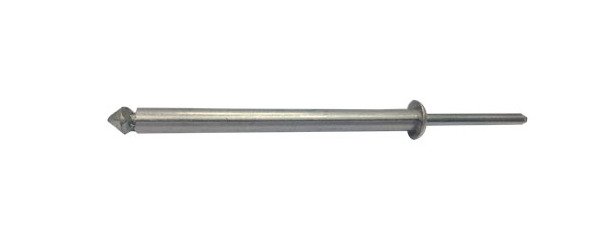

The TPR 228.0mm Body Length Self-Piercing Rivet is a top-quality fastening solution ideal for industrial and construction applications. This rivet features an aluminum alloy body with a natural finish, ensuring durability and corrosion resistance. With a mandrel diameter of 3.6mm and nominal shear force of 250 kgf, it provides strong and reliable joint fastening. Meeting stringent government procurement standards, including Federal/DoD requirements and FAR compliance factors, this rivet is trusted for its quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
228.0 mm | 9.0 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.8 to 7.0 mm | 0.268 to 0.276 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.6 mm | 0.142 in
Nominal Dimensions Maximum Grip Range
213.0 mm | 8.385 in
Nominal Dimensions Minimum Grip Range
193.0 mm | 7.598 in
Nominal Forces Nominal Shear Force
250 kgf | 551 lbf
Nominal Forces Nominal Tensile Force
320 kgf | 706 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 3.0/5.0)
Technical Specs Brands
Ornit | TPR
Technical Specs Carton Quantity
250
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
