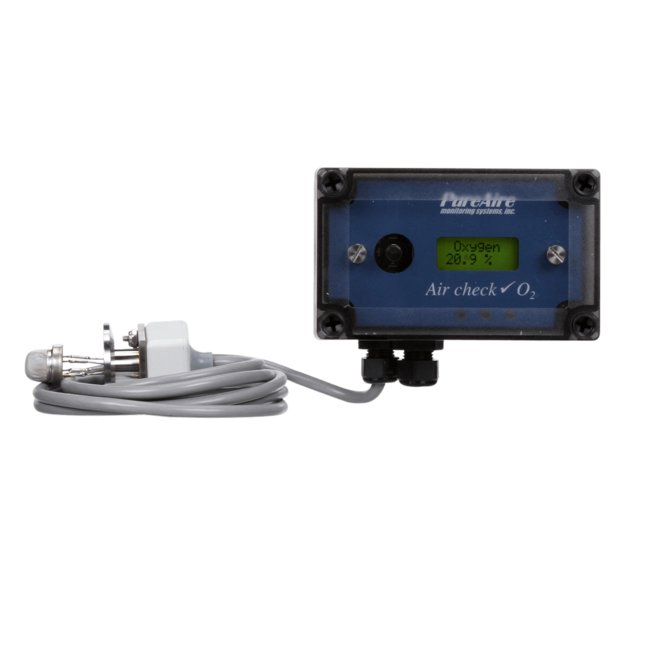

The Trace Oxygen Monitor with a long life zirconium oxide sensor is a specialized device designed for monitoring oxygen levels in various applications including vacuum environments, 3D printers, nitrogen sample lines, generators, and gas lines. With precise digital display, 4-20 mA analog output, dual-level alarm relays, and a wide operating temperature range from -40 to +55 ºC, this monitor ensures accurate oxygen sensing. The monitor's polycarbonate enclosure, UL, C UL, and CE approvals, and no calibration requirements make it a reliable choice for critical environments. Easy to install with its KF25 fitting and 10ft cable, this efficient monitor guarantees accurate oxygen monitoring without drift due to external factors.
Product Specifications
Options Options
24 VDC Power Supply (P/N 45101)Horn and Strobe Combo (P/N 42002)Remote Display (P/N 99091)
Specifications Accuracy
± 50 ppm
Specifications Current
250 mA
Specifications Depth
3.25 in | 83 mm
Specifications Digital Display Analog Output Range
4 to 20 mA
Specifications Direct Current Dc Voltage
24 V
Specifications Display
3/4" LCD Digital Display, Back Lit, 3 Alarms LED´s
Specifications Enclosure Material
Polycarbonate
Specifications Gases Detected
Oxygen (O2)
Specifications Height
5.5 in | 140 mm
Specifications Operating Temperature
-40 to +55 ºC
Specifications Oxygen Sensor
0 to 1000 ppm
Specifications Required Calibration
NoneNo Zero or Span Pot Adjustment Required
Specifications Sampling Method
Diffusion Oxygen Monitor(Supplied with KF 25 Fitting)
Specifications Sensor Type
Long life zirconium oxide sensor cell
Specifications Signal Outputs
4-20 mA Analog Output Dual Level Alarm Relay Contacts
Specifications Weight
2 lb | 0.9 kg
Specifications Width
5 in | 127 mm
Standard Features 0
Monitors in Partial Vacuum (300 torNo Maintenance RequiredNo Drift due to Thunderstorms or barometric pressure changesWall mounting brackets and optional plug-in wall power supplyUL, C UL and CE Approvals
