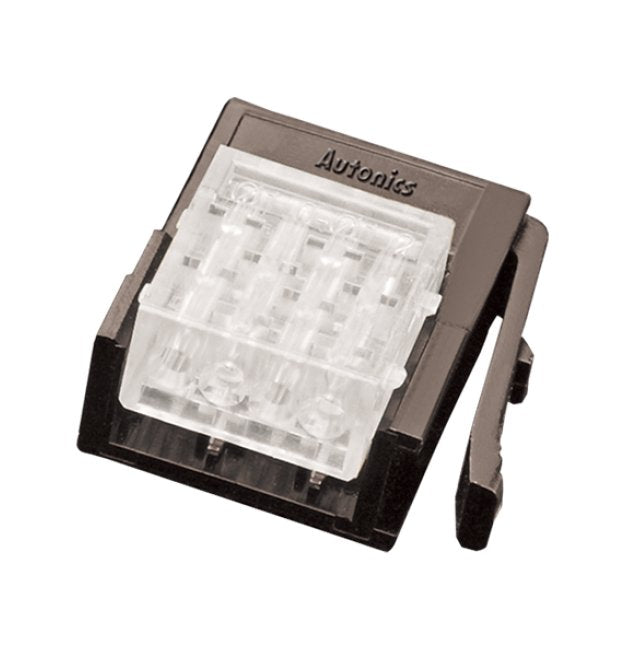

Transparent 4-Pin Wire Mount Plug Connector
Transparent 4-Pin Wire Mount Plug Connector
SKU:PRO-a2818d
Reliable Transparent 4-Pin Wire Mount Plug Connector for secure connections in institutional settings.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Transparent 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Transparent 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Transparent 4-Pin Wire Mount Plug Connector is a high-quality sensor connector designed for maximum alternating current/direct current voltage of ~250V. With a Terminal Material of C5210 (Gold 0.2 μm) and Body Material of Polycarbonate/ABS (UL94-V0), it ensures secure and reliable connections. This connector complies with stringent standards such as minimum terminal retention of 1.4 kgf and a maximum insertion force per pin of 1.96 N, making it ideal for institutional and government procurement needs.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Transparent
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Transparent
Specifications Cover Diameter
0.6 to 0.8 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.05 to 0.08 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.05 to 0.08 mm²
Specifications Wire Size
30-28 AWG
