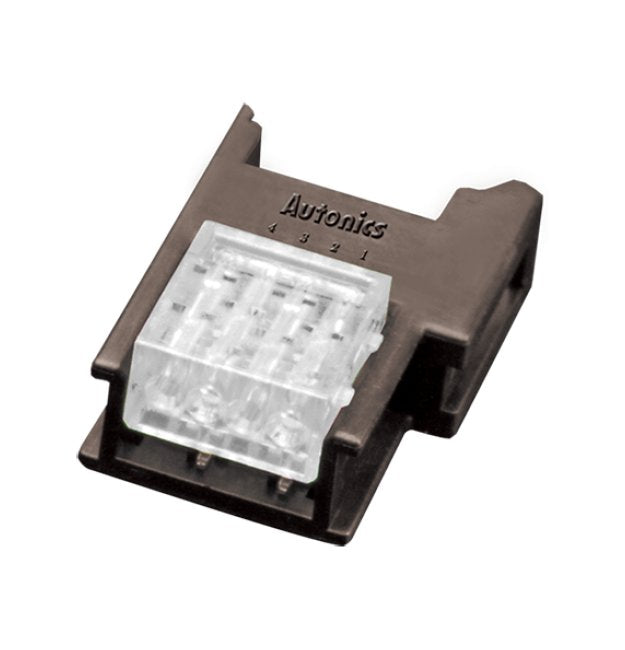

Transparent 4-Pin Wire Mount Socket Connector
Transparent 4-Pin Wire Mount Socket Connector
SKU:PRO-c25141
High-quality Transparent 4-Pin Wire Mount Socket Connector for secure and reliable connections in various applications.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Transparent 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Claim Your Seller Account
Transparent 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Transparent 4-Pin Wire Mount Socket Connector is a high-quality solution for your connectivity needs. With a maximum AC/DC voltage of ~250V and a maximum rated current of 3.0A, this sensor connector is designed for reliability. Its Terminal Material is C5210 with Gold plating, while the Body Material is Polycarbonate/ABS ensuring durability (UL94V-0 rated). The connector is suitable for 30-28 AWG wires, with a wire size ranging from 0.05 to 0.08 mm². Whether for consumer or institutional use, this connector offers secure connections and ease of installation.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Transparent
Specifications Connector Type
Wire Mount Socket
Specifications Cover Color
Transparent
Specifications Cover Diameter
0.6 to 0.8 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.05 to 0.08 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.05 to 0.08 mm²
Specifications Wire Size
30-28 AWG
