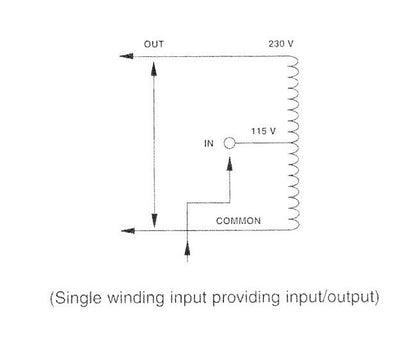

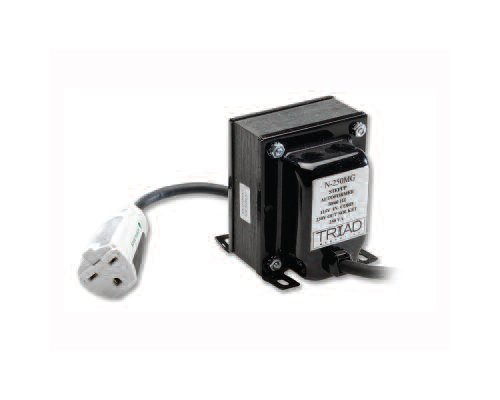

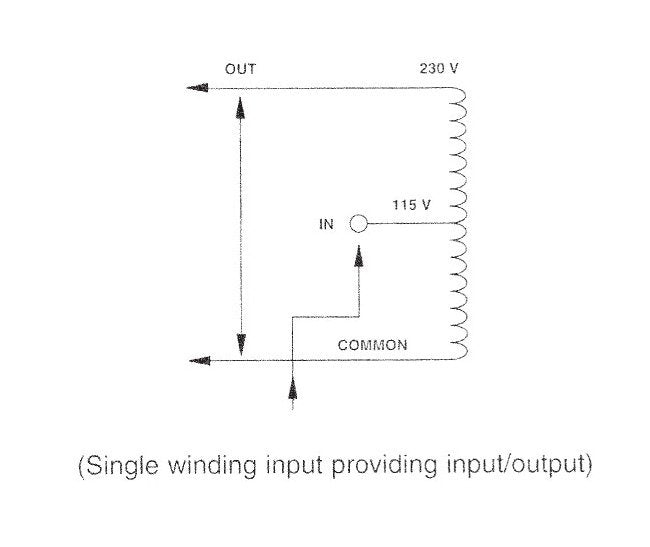

The Triad Autotransformer Power Transformer offers a single winding design for efficient voltage step-up or step-down. With an output wattage rating of 1,000VA, primary voltage at 115V, and secondary voltage at 230V, this transformer is ideal for various power applications. Featuring a compact M case type, 6' wire cord with plug & socket connections, and dimensions of 5 3/8"(H) x 4 1/2"(W) x 5 1/2"(D), this transformer ensures reliable performance. Moreover, it undergoes rigorous testing, including hi-pot testing at 1,500 VRMS, ensuring quality and safety.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' - 3 Wire Cord, Plug & Socket
Specifications Depth D
5 1/2 in
Specifications Height H
5 3/8 in
Specifications Mounting Depth
4 1/8 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
1,000 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Rms Current
4.35 A
Specifications Secondary Voltage 5
230 V
Specifications Weight
17.4 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
