Triad Autotransformer Power Transformers
Triad Autotransformer Power Transformers
SKU:POW-f79d05
Efficient single winding autotransformers with up to 2000W, offering voltage step-up/down & extensive configuration options.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers
$349.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

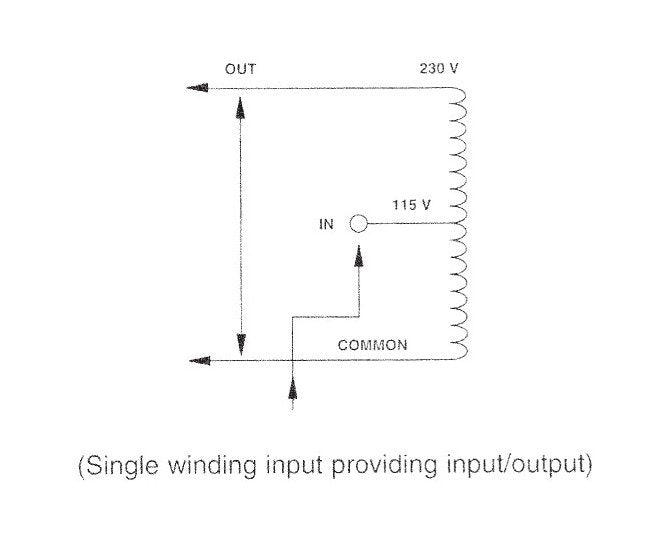

The Triad Autotransformer Power Transformers are expertly designed single winding transformers that offer efficient voltage step-up or step-down capabilities. Unlike traditional double-wound transformers, these autotransformers conductively transfer power through the windings, providing exceptional energy efficiency. With a variety of configurations and case types, these transformers have an output wattage (VA) rating exceeding 2,000 watts, and a universal isolation/autotransformer/voltage control model can reach up to 4,000 watts. Designed for reliability, they come with a range of specifications including primary and secondary voltages, frequency, and multiple connection options. Ideal for various applications requiring precise voltage control and efficient power management.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket - 3-Wire Plug, Cord and Socket
Specifications Depth D
8 1/4 in
Specifications Height H
5 3/8 in
Specifications Mounting Depth
6 7/8 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
2,000 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
17.40 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
33.3 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
