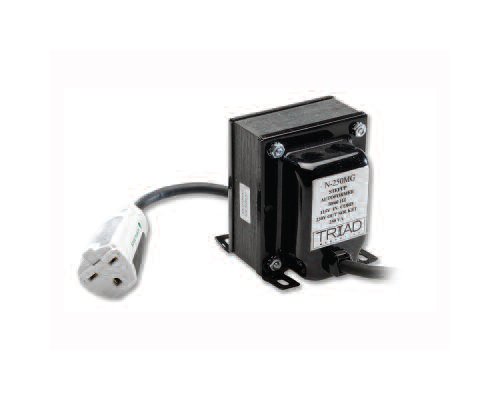

Triad Autotransformer Power Transformers
Triad Autotransformer Power Transformers
SKU:POW-68deab
Efficient and versatile autotransformer power transformers for step-up or step-down voltage applications, with output wattage ratings over 2,000 watts.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers
$149.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

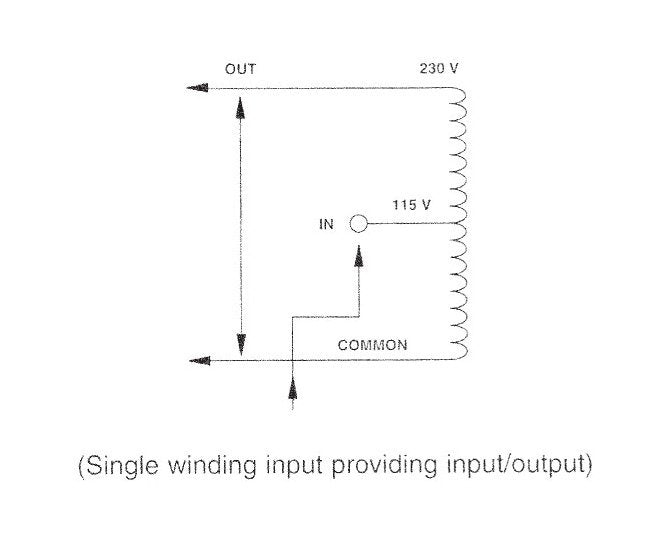

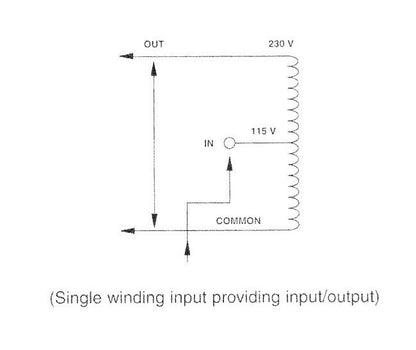

The Triad Autotransformer Power Transformers offer a versatile solution for voltage step-up or step-down applications. These single winding transformers allow part of the power to be transferred conductively through the windings, providing efficiency and reliability. With output wattage ratings exceeding 2,000 watts and various configurations available, including a universal isolation/autotransformer/voltage control model, the Triad Autotransformers are designed to meet diverse power needs. The transformers are built with a high-quality M case type, ensuring durability and longevity.
Product Specifications
Specifications Case Type
M
Specifications Connections
6'-3 Wire Cord, Plug & Socket
Specifications Depth D
3 5/16 in
Specifications Height H
3 19/32 in
Specifications Mounting Depth
2 1/8 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/4 in
Specifications Output Wattage Va Rating
150 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Rms Current
0.65 A
Specifications Secondary Voltage 5
230 V
Specifications Weight
4.90 lb
Specifications Width W
2 31/32 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
