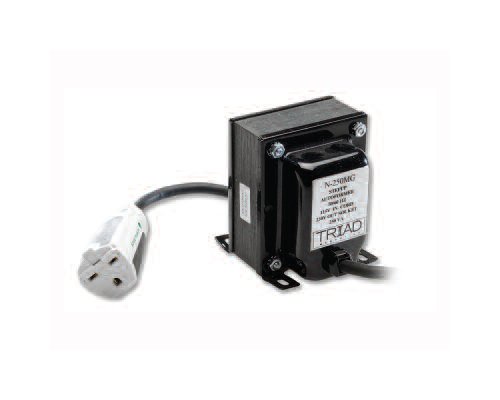

Triad Autotransformer Power Transformers - 1250 VA, 230V to 115V
Triad Autotransformer Power Transformers - 1250 VA, 230V to 115V
SKU:POW-c2519f
Revolutionary Triad Autotransformers - Efficient, Reliable Power Transfer
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers - 1250 VA, 230V to 115V
$289.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers - 1250 VA, 230V to 115V
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

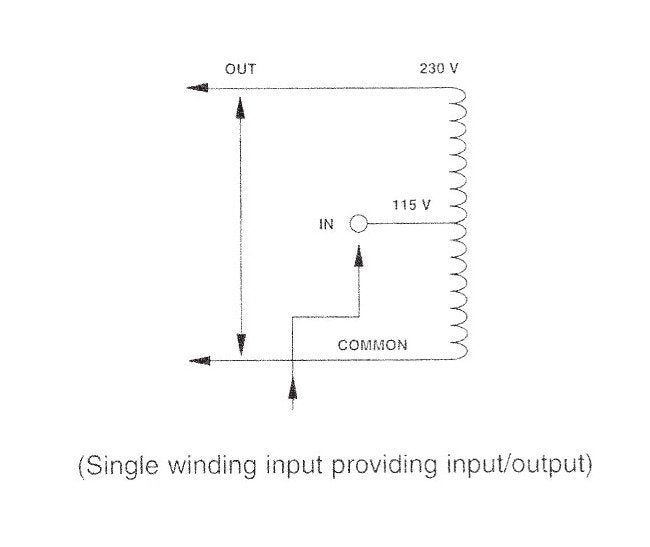

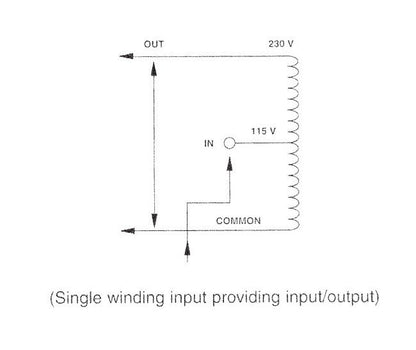

The Triad Autotransformer Power Transformers revolutionize voltage regulation with their innovative single winding design. Ideal for both voltage step-up and step-down applications, these transformers offer unparalleled efficiency and power transfer. Featuring a primary voltage of 230V and a secondary voltage of 115V, with a robust output wattage rating of 1250 VA, these transformers are perfect for various industrial and institutional settings. With diverse case types, 50/60 Hz frequency compatibility, and rigorous hi-pot testing, the Triad Autotransformers ensure reliability and performance.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket - 3-Wire Plug, Cord and Socket
Specifications Depth D
6 in
Specifications Height H
5 5/16 in
Specifications Mounting Depth
4 1/2 in
Specifications Mounting Width
3 1/2 in
Specifications Output Wattage Va Rating
1,250 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
10.85 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
21.00 lb
Specifications Width W
4 1/2 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
