Triad Autotransformer Power Transformers
Triad Autotransformer Power Transformers
SKU:POW-0c5042
High-performance autotransformers for efficient voltage control in various power applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers
$249.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

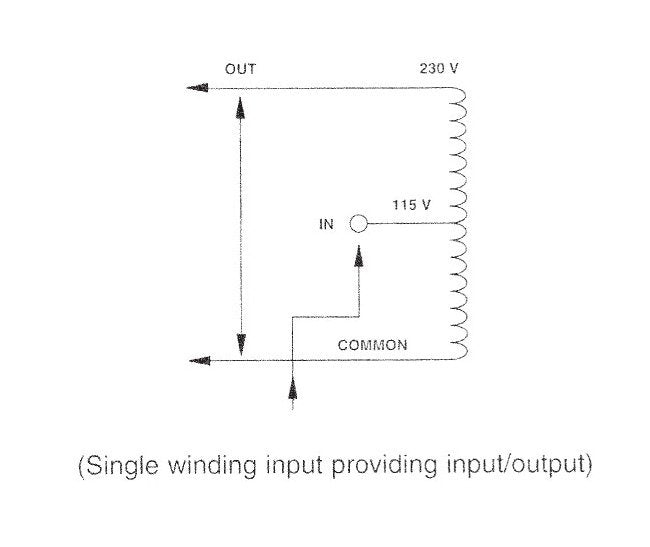

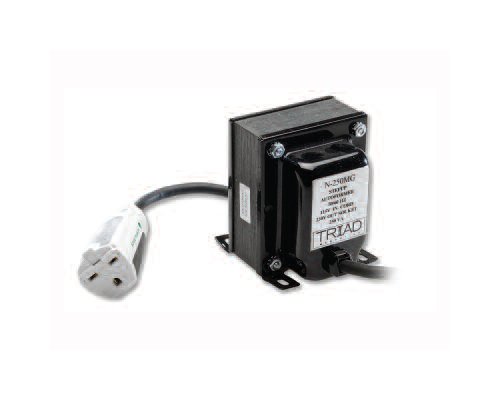

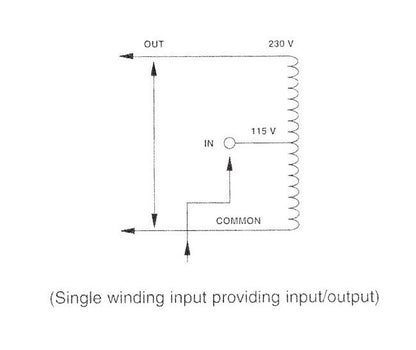

The Triad autotransformer power transformers are meticulously designed for reliable voltage step-up or step-down applications. Unlike traditional transformers, these autotransformers allow efficient power transfer with a fraction of the winding. With a wide range of output watts (VA) exceeding 2,000 watts, they come in various configurations and case types. The universal isolation/autotransformer/voltage control model can deliver up to 4,000 output watts under autotransformer operation, ensuring versatility and performance in diverse settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Case Type
M
Specifications Connections
6' - 3-Wire Plug, Cord and Socket
Specifications Depth D
3 11/16 in
Specifications Height H
3 7/8 in
Specifications Mounting Depth
2 7/16 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/2 in
Specifications Output Wattage Va Rating
250 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Rms Current
1.10 A
Specifications Secondary Voltage 5
230 V
Specifications Weight
6.60 lb
Specifications Width W
3 1/4 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
