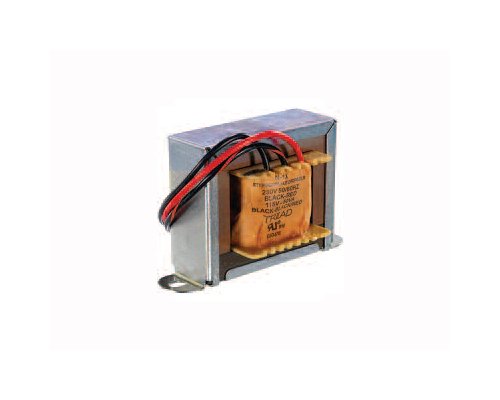

Triad Autotransformer Power Transformers - 2000W VA Rating
Triad Autotransformer Power Transformers - 2000W VA Rating
SKU:POW-cd96da
High-performance autotransformers for precise voltage control. Wide range of configurations and case types for diverse applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers - 2000W VA Rating
$289.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers - 2000W VA Rating
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

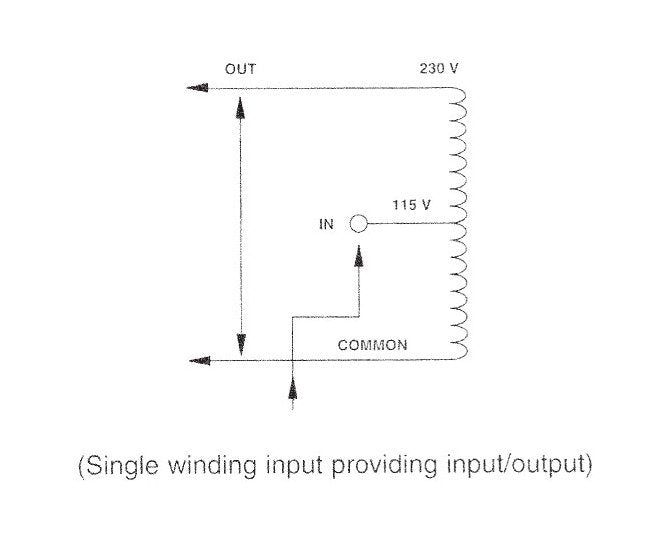

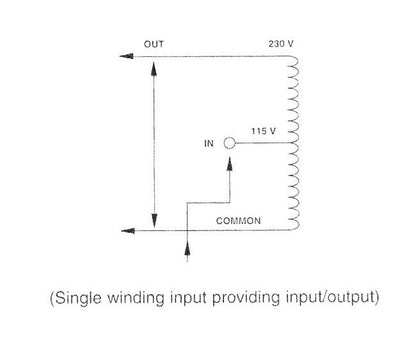

The Triad autotransformer power transformers offer efficient voltage step-up and step-down capabilities with a single winding design. Ideal for applications requiring precise voltage control, these transformers come in various configurations and case types to suit diverse needs. With an output wattage (VA) rating exceeding 2,000 watts, they ensure reliable power transfer and high performance. Constructed for durability and performance, these autotransformers undergo stringent testing to meet industry standards and deliver optimal electrical output.
Product Specifications
Specifications Case Type
X
Specifications Connections
Leads
Specifications Depth D
2 in
Specifications Height H
2 9/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 1/8 in
Specifications Output Wattage Va Rating
50 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
0.435 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
1.50 lb
Specifications Width W
3 18/25 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.Operating temperature is based on a 40°C temperature rise.
