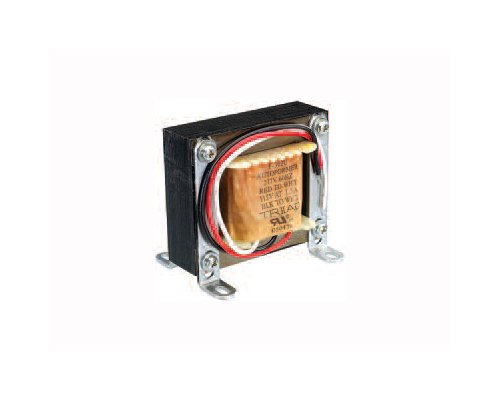

The Triad Autotransformer Power Transformers are essential components for voltage step-up or step-down applications, providing reliable power transfer through conductive winding. With a primary voltage of 277V and a secondary voltage of 115V, these transformers offer an Output Wattage (VA) rating of 150W, making them ideal for various power needs up to 2,000 watts. Featuring a compact design with universal isolation capabilities, these transformers come in a range of case types, ensuring flexibility and high performance in diverse settings.
Product Specifications
Specifications Case Type
U
Specifications Connections
Leads
Specifications Depth D
2 1/4 in
Specifications Height H
2 13/16 in
Specifications Mounting Depth
2 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 13/16 in
Specifications Output Wattage Va Rating
150 W
Specifications Primary Frequency
60 Hz
Specifications Primary Voltage
277 V
Specifications Secondary Rms Current
1.30 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
2.90 lb
Specifications Width W
3 3/8 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
