Triad Autotransformer Power Transformers
Triad Autotransformer Power Transformers
SKU:POW-84ee81
Efficient Triad Autotransformer Power Transformers for versatile voltage control applications. Output up to 4,000 watts.
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers
$119.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers
$119.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

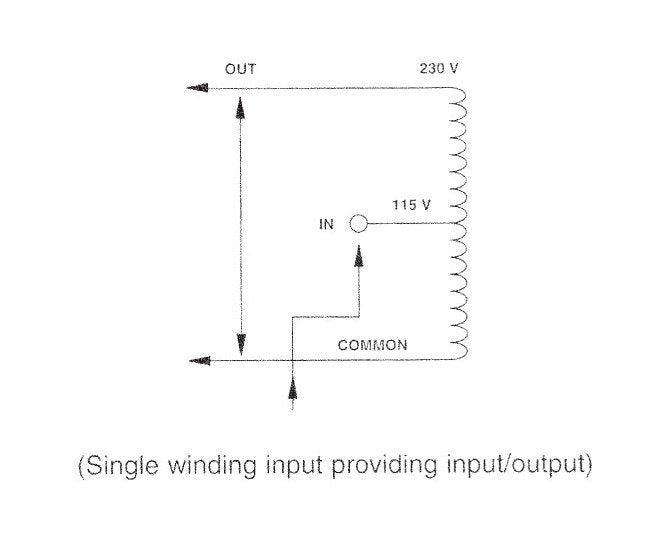

The Triad Autotransformer Power Transformers offer a unique single winding design that allows for voltage step-up or step-down applications. Unlike traditional transformers, these autotransformers transfer power conductively through the windings, providing efficiency and flexibility. With output wattage ratings exceeding 2,000 watts and various case types available, including the universal isolation/autotransformer/voltage control model rated up to 4,000 watts, these transformers are suitable for a wide range of applications in both consumer and institutional settings.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' - 3-Wire Plug, Cord and Socket
Specifications Depth D
4 1/4 in
Specifications Height H
3 19/32 in
Specifications Mounting Depth
2 7/8 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/4 in
Specifications Output Wattage Va Rating
150 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
1.30 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
4.70 lb
Specifications Width W
2 31/32 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
