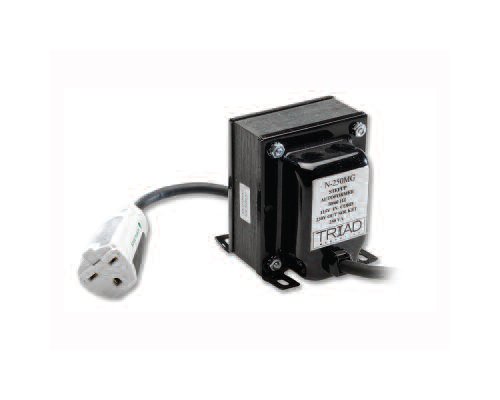

Triad Autotransformer Power Transformers

Triad Autotransformer Power Transformers

POW-103859

Experience efficient voltage control with Triad Autotransformers for reliable power transfer in various configurations.

$249.99
$249.99
Sale

Initiate Order

Triad Autotransformer Power Transformers

Triad Autotransformer Power Transformers

$249.99

Quantity: 1

Claim Your Seller Account

Triad Autotransformer Power Transformers

Triad Autotransformer Power Transformers

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

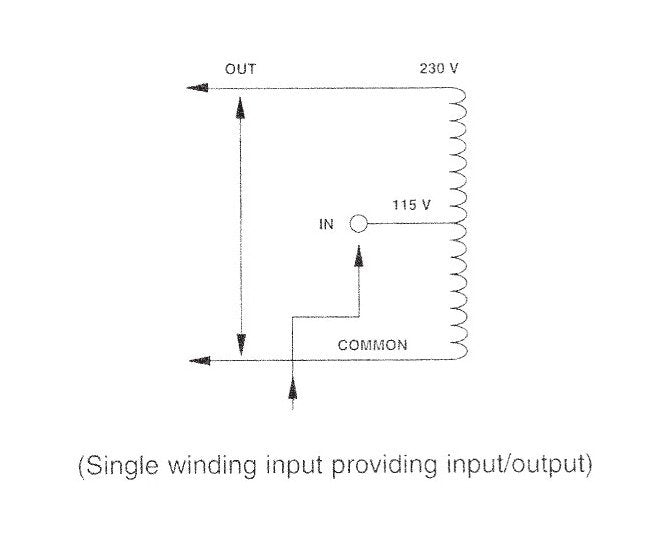

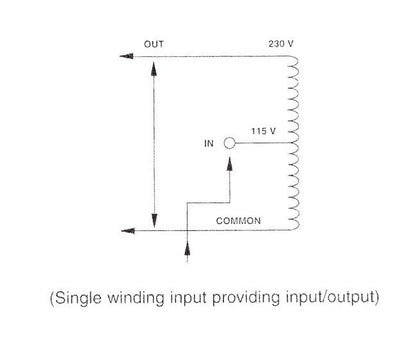

The Triad autotransformer power transformers offer a unique single winding design for efficient voltage step-up or step-down operations. Unlike traditional double-wound transformers, these autotransformers transfer power conductively through the winding, ensuring reliable performance. With output wattage (VA) ratings exceeding 2,000 watts and a universal isolation/autotransformer/voltage control model available up to 4,000 watts, these transformers are versatile and robust. Featuring various configurations, case types, and connections, Triad autotransformers are ideal for a wide range of applications in both consumer and institutional settings.

Product Specifications

Specifications Case Type
M
Specifications Connections
6' - 3-Wire Plug, Cord and Socket
Specifications Depth D
4 13/16 in
Specifications Height H
3 7/8 in
Specifications Mounting Depth
3 1/2 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/2 in
Specifications Output Wattage Va Rating
250 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
2.17 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
7.00 lb
Specifications Width W
3 9/32 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
