Triad Autotransformer Power Transformers - 500W, 115V/230V, High Efficiency
Triad Autotransformer Power Transformers - 500W, 115V/230V, High Efficiency
SKU:POW-c4d6f6
High-efficiency Triad Autotransformer Power Transformers for reliable voltage adjustment in diverse applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers - 500W, 115V/230V, High Efficiency
$299.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers - 500W, 115V/230V, High Efficiency
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

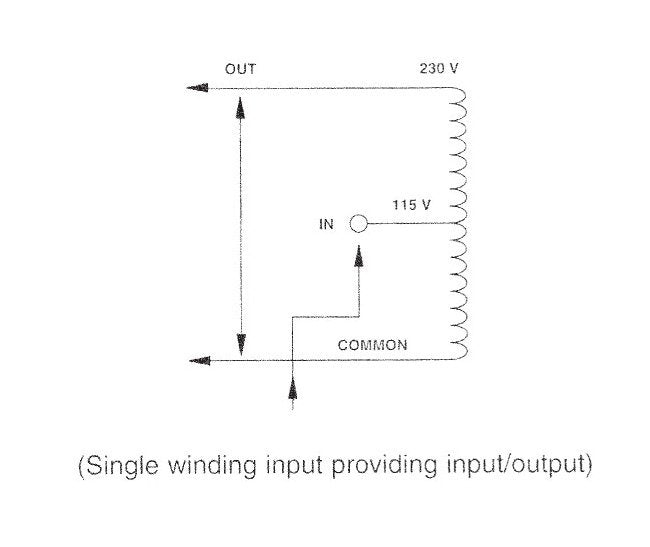

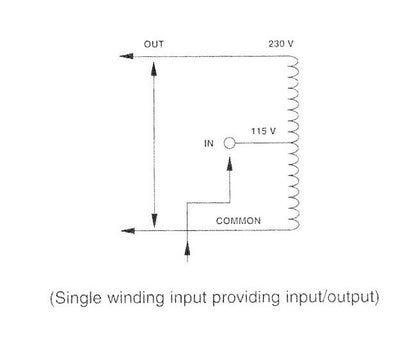

Triad Autotransformer Power Transformers offer a versatile solution for voltage step-up or step-down applications, featuring a single winding design for efficient power transfer. With output wattage ratings up to 2,000W, various case types, and a universal isolation/autotransformer/voltage control model, these transformers deliver reliable performance. Built with high-quality materials and precision engineering, Triad Autotransformers ensure optimal conductivity and safety in diverse configurations. Ideal for commercial, industrial, and institutional settings requiring robust power distribution.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' - 3 Wire Cord, Plug & Socket
Specifications Depth D
4 3/4 in
Specifications Height H
4 5/8 in
Specifications Mounting Depth
3 5/8 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
3 in
Specifications Output Wattage Va Rating
500 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Rms Current
2.20 A
Specifications Secondary Voltage 5
230 V
Specifications Weight
11.20 lb
Specifications Width W
3 7/8 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
