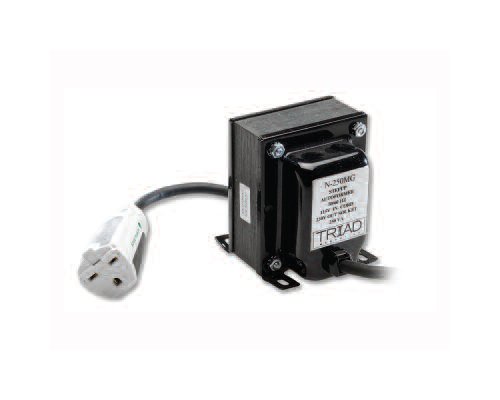

Triad Autotransformer Power Transformers
Triad Autotransformer Power Transformers
SKU:POW-3e15f1
Efficient voltage control with Triad Autotransformer Power Transformers. Versatile, high-wattage models for various applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers
$189.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

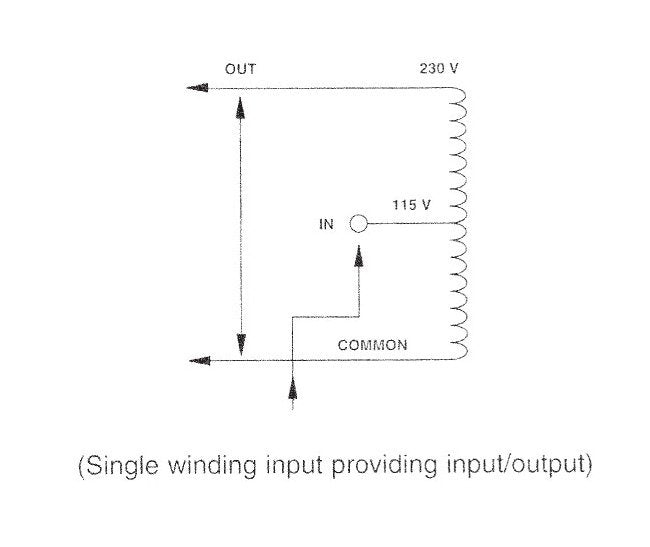

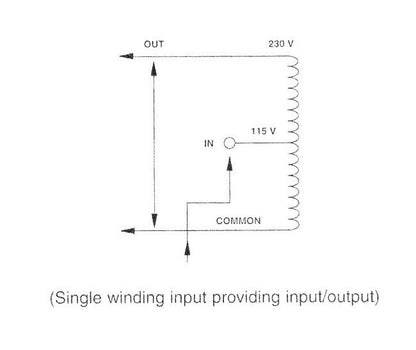

The Triad Autotransformer Power Transformers offer efficient voltage step-up and step-down capabilities, with primary and secondary coil configurations allowing for versatile power transfer. Ranging up to 2,000 watts, these transformers come in various case types and provide a universal isolation/autotransformer/voltage control model with a massive 4,000 watts output. Ideal for both consumer and institutional buyers requiring reliable power transformation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Case Type
M
Specifications Connections
6' - 3-Wire Plug, Cord and Socket
Specifications Depth D
5 in
Specifications Height H
4 5/8 in
Specifications Mounting Depth
3 7/8 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
3 in
Specifications Output Wattage Va Rating
600 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
5.22 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
12.0 lb
Specifications Width W
3 15/16 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
