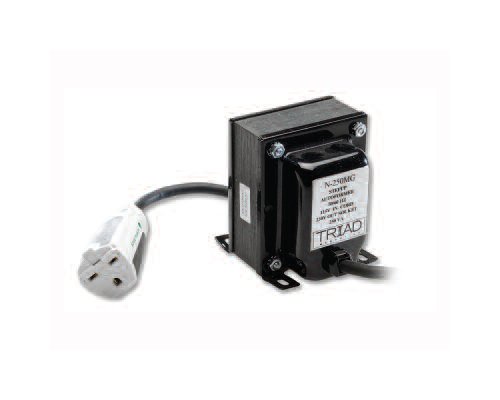

Triad Autotransformer Power Transformers 85 VA
Triad Autotransformer Power Transformers 85 VA
SKU:POW-1c80fa
Efficient Triad Autotransformer for step-up or step-down voltage regulation. Ideal for up to 2,000 watts applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers 85 VA
$89.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers 85 VA
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

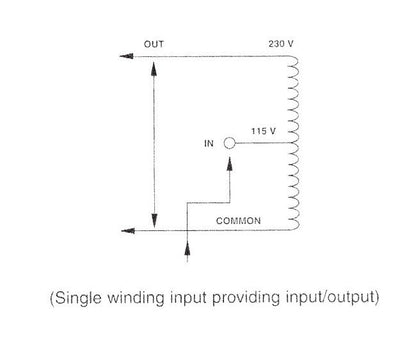

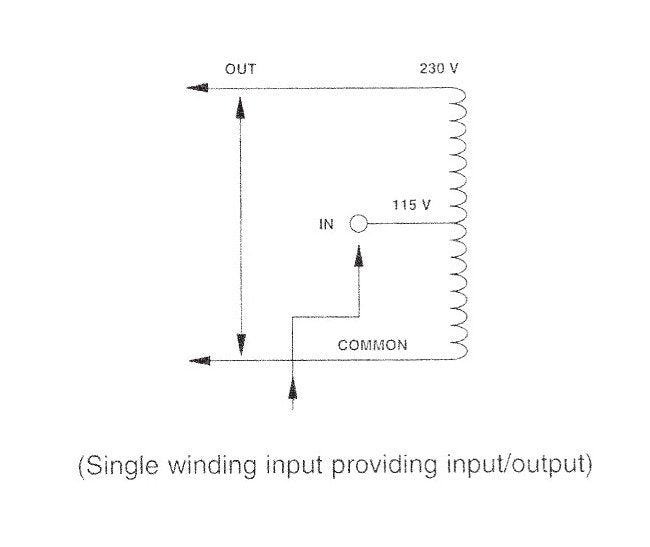

The Triad Autotransformer Power Transformers are designed for efficient voltage regulation with a primary voltage of 230 V and a secondary voltage of 115 V. These transformers offer a compact M case type, 6' cord with plugs and sockets, and a sturdy construction capable of handling up to 2,000 watts. With conductive power transfer, they provide reliable performance for various applications. Additionally, these autotransformers undergo rigorous hi-pot testing at 1,500 VRMS to ensure quality and safety.
Product Specifications
Specifications Case Type
M
Specifications Connections
6' Cord, Plug & Socket - 3-Wire Plug, Cord and Socket
Specifications Depth D
3 1/2 in
Specifications Height H
3 19/32 in
Specifications Mounting Depth
2 5/8 in
Specifications Mounting Hole Size
3/8 x 3/16 in
Specifications Mounting Width
2 1/4 in
Specifications Output Wattage Va Rating
85 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
0.74 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
3.00 lb
Specifications Width W
2 31/32 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
