Triad Autotransformer Power Transformers VA-2000
Triad Autotransformer Power Transformers VA-2000
SKU:POW-49f516
Enhance power efficiency with Triad Autotransformer Power Transformers. Step-up or step-down voltage with ease and precision.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers VA-2000
$249.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers VA-2000
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

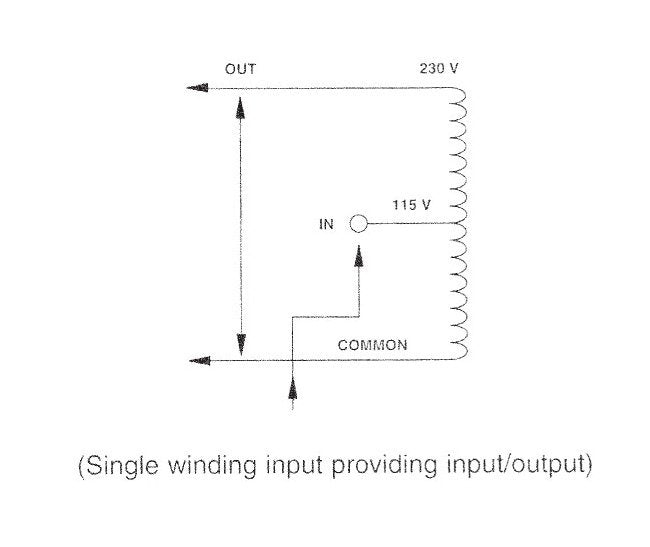

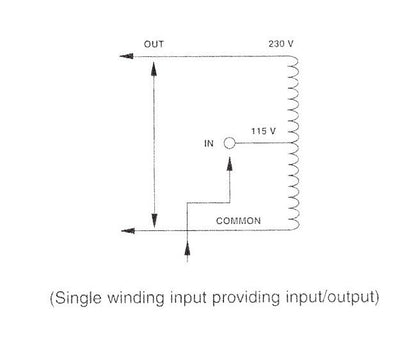

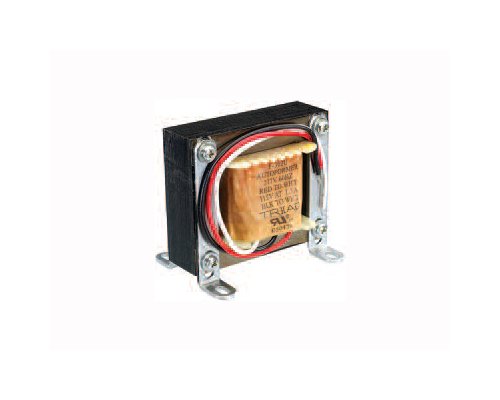

The Triad Autotransformer Power Transformers offer innovative single winding design for voltage step-up or step-down with a high output wattage of up to 2,000 W. Conductively transferring power through windings, these transformers come in various configurations and case types to meet diverse requirements. The universal isolation/autotransformer/voltage control model ensures up to 4,000 output watts when operating as an autotransformer, providing efficient power management and reliable performance for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Case Type
U
Specifications Connections
Leads
Specifications Depth D
2 13/16 in
Specifications Height H
3 3/8 in
Specifications Mounting Depth
2 1/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/4 in
Specifications Output Wattage Va Rating
200 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
1.70 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
3.60 lb
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
