Triad Autotransformer Power Transformers - Voltage Step-Up/Step-Down
Triad Autotransformer Power Transformers - Voltage Step-Up/Step-Down
SKU:POW-a9fb4c
Efficient voltage step-up/down with Triad Autotransformer Power Transformers. Versatile and reliable with up to 4,000 watts output. Ideal for various applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Triad Autotransformer Power Transformers - Voltage Step-Up/Step-Down
$299.99
Quantity: 1
Claim Your Seller Account
Triad Autotransformer Power Transformers - Voltage Step-Up/Step-Down
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

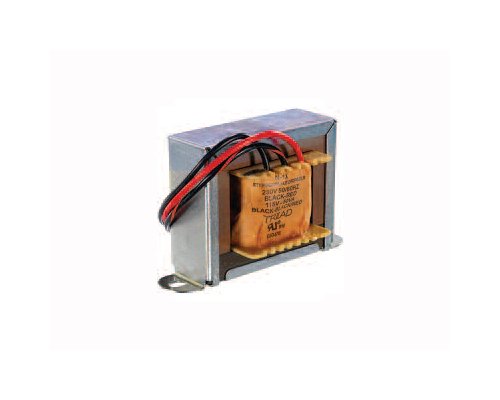

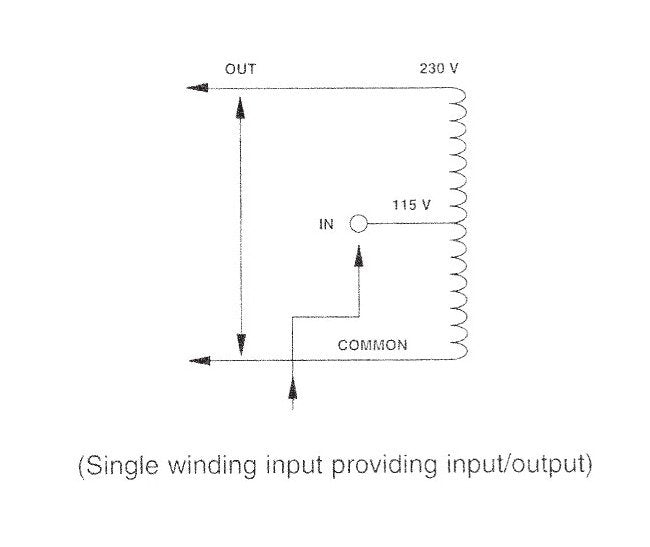

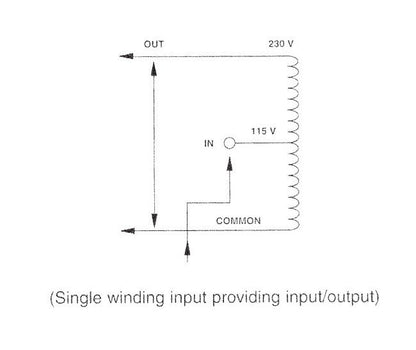

The Triad autotransformer power transformers provide efficient voltage step-up or step-down capabilities with a single winding design. These transformers feature a range of configurations, case types, and output watt ratings exceeding 2,000 watts. With conductive power transfer through windings, they offer versatility and superior performance. The universal isolation/autotransformer/voltage control model delivers up to 4,000 watts output, ensuring reliability and flexibility for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Case Type
X
Specifications Connections
Leads
Specifications Depth D
2 1/16 in
Specifications Height H
2 5/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 5/8 in
Specifications Output Wattage Va Rating
100 W
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
230 V
Specifications Secondary Rms Current
0.87 A
Specifications Secondary Voltage 5
115 V
Specifications Weight
2.10 lb
Specifications Width W
4 in
Technical Notes Technical Notes
Output wattage (VA) ratings 50 to 2,000 W.Wide selection of case types, including 6' line cords, plugs, sockets and lugs.All transformers are 50/60 Hz line frequency, except as noted.Hi-pot tested at 1,500 VRMS.
