The Triad Chassis Mount Leaded World Series™ Power Transformers are expertly crafted to meet International safety agency standards with European split bobbin construction. These transformers boast reduced interwinding capacitance and 3,500 V isolation between primary and secondary windings. Offering a range from 5 VA to 56 VA, with 115 V / 230 V primary windings and 6 mm creepage distance, these transformers are designed for reliability and efficiency in power applications.
Product Specifications
Note 0

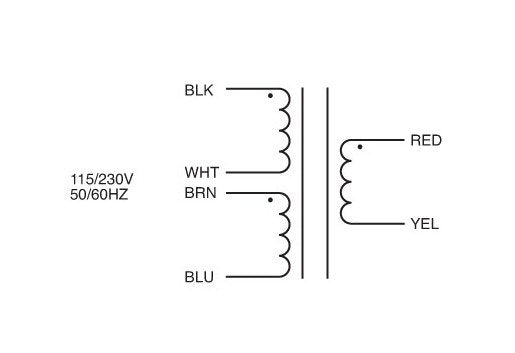

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
2 1/4 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 9/16 in
Specifications Mounting Width
3 9/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Series Connected
26.8 V | 1.866 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.30 lb
Specifications Width W
4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
