Triad Chassis Mount Power Transformers

Name: Triad Chassis Mount Power Transformers
Brand: Triad Magnetics
SKU: POW-6894f3
Price: 49.99 USD
Availability: OutOfStock

SKU:POW-6894f3

Premium Triad Power Transformers with European split bobbin construction, sizes from 5-56 VA, 115V/230V primary windings, 6mm creepage distance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Triad Chassis Mount Leaded World Series™ Power Transformers are meticulously crafted with European-style split bobbins to comply with international safety standards, reducing interwinding capacitance and eliminating the requirement for electrostatic shielding. Available in various sizes from 5 VA to 56 VA, with primary windings of 115 V / 230 V 50/60 Hz, and 3,500 V isolation between primary and secondary windings. These transformers feature a 6 mm creepage distance primary to secondary, ensuring optimal performance and safety for a wide range of applications.

Product Specifications

Note 0

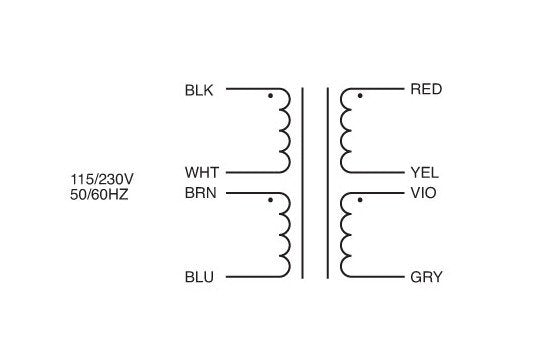

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independently

Specifications Case Type

Specifications Center Tap

Specifications Creepage Distance

6 mm

Specifications Depth D

1 3/4 in

Specifications Electrical Rating

10 VÂ·A

Specifications Height H

1 3/4 in

Specifications Mounting Width

2 3/8 in

Specifications Primary Frequency

50 Hz | 60 Hz

Specifications Primary Voltage

115 V | 230 V

Specifications Secondary Parallel Connected

1.25 V | 8.000 A

Specifications Secondary Series Connected

2.5 V | 4.000 A

Specifications Transformer Contact Type

Center Tap

Specifications Weight

0.70 lb

Specifications Width W

2 13/16 in

Technical Notes 0

Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
