Triad Chassis Mount Quick-Connect Power Transformers
Triad Chassis Mount Quick-Connect Power Transformers
SKU:POW-656f68
Premium chassis mount transformers meeting international standards, offering dual bobbin design, electrical isolation, and quick-connect terminations.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Triad Chassis Mount Quick-Connect Power Transformers
$79.99
Quantity: 1
Claim Your Seller Account
Triad Chassis Mount Quick-Connect Power Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

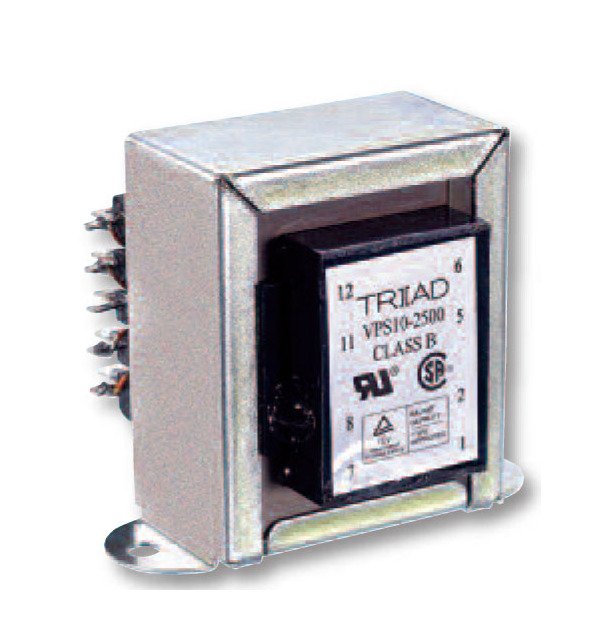

The Triad Chassis Mount Quick-Connect World Series™ Power Transformers are expertly designed to meet a spectrum of U.S. and International standards such as CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin configuration encased in high-temperature insulating material, these transformers eliminate the necessity for electrostatic shielding due to minimal coil capacitance. With electrical isolation between primary and secondary coils, and the core, these transformers ensure optimal performance and safety. Available in sizes ranging from 25 VA to 175 VA, and equipped with 'quick connect' terminations, they offer utmost convenience and reliability for various power applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Class 2/3 UL File: E65390

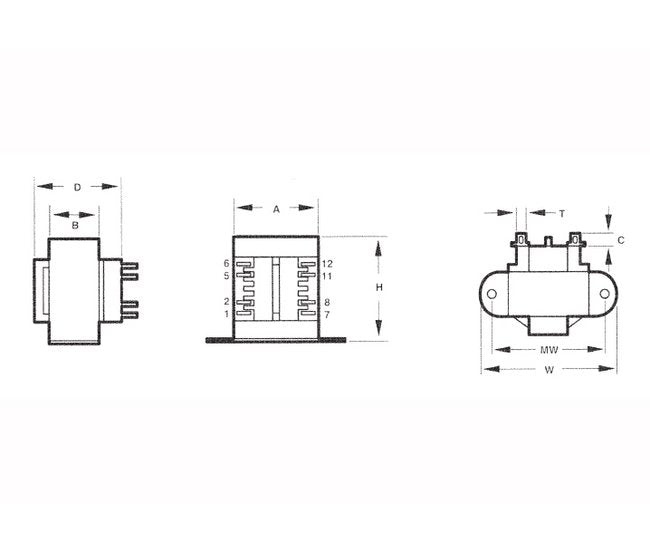

Specifications Depth D
2 in
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/8 in
Specifications Dimension C
5/16 in
Specifications Dimension T
3/16 in
Specifications Electrical Rating
43 V·A
Specifications Height H
2 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
14.0 V at 3.0 A
Specifications Secondary Series
28.0 V CT at 1.5 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.60 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
