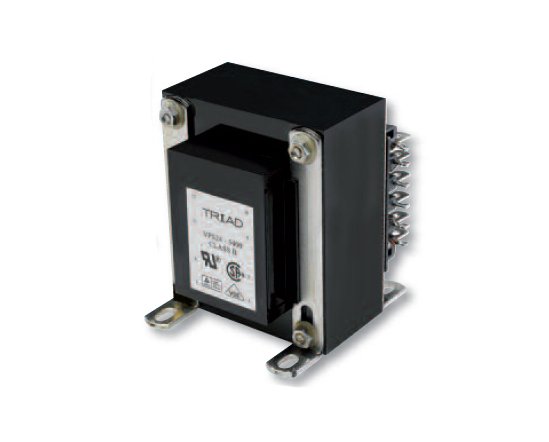

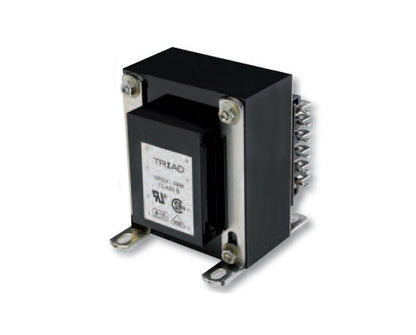

The Triad Chassis Mount Quick-Connect World Series Power Transformers are expertly designed to meet a wide range of U.S. and International standards including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design housed inside an insulating shroud made of UL approved high-temperature material, these transformers eliminate the need for electrostatic shielding due to minimal capacitance between coils in the dual bobbin configuration. With both primary and secondary coils electrically isolated from each other and the core, these transformers ensure safety and reliability in diverse applications. Available in various sizes from 25 VA to 175 VA, these transformers come with convenient 'quick connect' terminations for easy installation.
Product Specifications

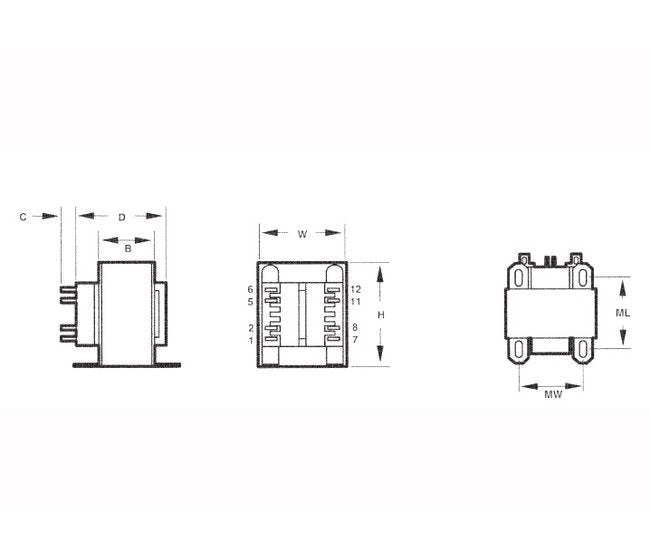

Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
12.0 V at 10.8 A
Specifications Secondary Series
24.0 V CT at 5.4 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
