Triad Chassis Mount Quick Pack Power Transformers
Triad Chassis Mount Quick Pack Power Transformers
SKU:POW-cc327d
Experience compact, efficient power transformation with Triad Chassis Mount Quick Pack Transformers. Ideal for diverse applications, these transformers deliver superior performance in a space-saving design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Triad Chassis Mount Quick Pack Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Triad Chassis Mount Quick Pack Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad Chassis Mount Quick Pack Power Transformers revolutionize power delivery with a compact design, reducing size and weight without compromising performance. Offering a range of sizes for versatile applications, these transformers feature bobbin wound construction for space efficiency and split bobbin nonconcentric winding for cost-saving electrostatic shielding elimination. With a center tap transformer contact type and options for quick connects or soldering, these transformers are designed for seamless integration and high efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
20.0 V CT at 0.6 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V

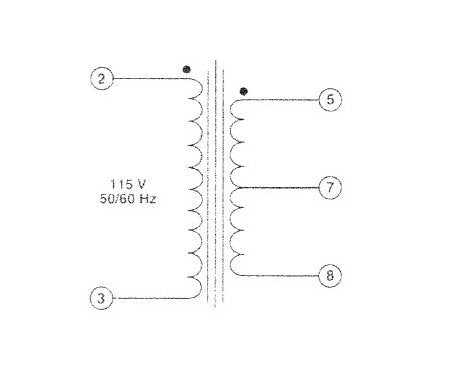

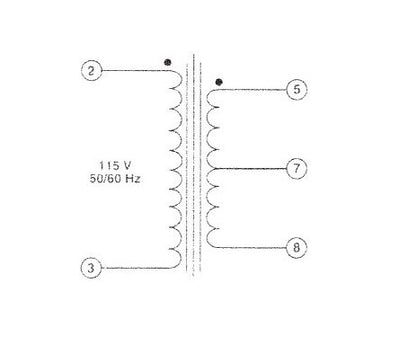

Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
