Triad Chassis Mount Quick Pack Power Transformers
Triad Chassis Mount Quick Pack Power Transformers
SKU:POW-65ed6a
Compact, efficient, and cost-effective power transformers for diverse applications, featuring bobbin wound construction and versatile termination options.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Triad Chassis Mount Quick Pack Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Triad Chassis Mount Quick Pack Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triad Chassis Mount Quick Pack Power Transformers redefine efficiency and space-saving with their compact design and lightweight construction. Offering a notable reduction in size and weight without compromising performance, these transformers are ideal for various applications. Bobbin wound for reduced size, they feature a split bobbin nonconcentric winding that eliminates the need for costly electrostatic shielding. With termination options suitable for quick connects or soldering, these transformers deliver reliable power distribution.
Product Specifications
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in
Specifications Output Rating
36.0 V CT at 0.85 A
Specifications Primary Frequency
50 Hz | 60 Hz

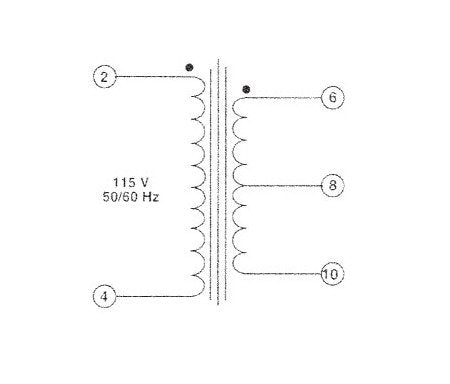

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
