Triad Chassis Mount Quick Pack Power Transformers

Triad Chassis Mount Quick Pack Power Transformers

SKU:POW-12fa56

Compact, lightweight power transformers with high efficiency and Class B insulation for diverse applications.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Triad Chassis Mount Quick Pack Power Transformers

Triad Chassis Mount Quick Pack Power Transformers

$79.99

Quantity: 1

Claim Your Seller Account

Triad Chassis Mount Quick Pack Power Transformers

Triad Chassis Mount Quick Pack Power Transformers

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Triad Chassis Mount Quick Pack Power Transformers are meticulously designed to offer a substantial reduction in size and weight compared to traditional transformers while maintaining a high VA rating of 100. Featuring a compact, bobbin wound construction, these transformers are engineered for efficiency and space-saving benefits. The split bobbin nonconcentric winding eliminates the need for costly electrostatic shielding, enhancing cost-effectiveness. With primary voltage of 115V, center tap transformer contact type, and Class B insulation for temperatures up to 130°C, these transformers are ideal for various applications demanding reliability, compactness, and performance.

Product Specifications

Specifications Dimension A
3 1/16 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
100 V·A
Specifications Height H
2 9/16 in
Specifications Length L
4 1/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 9/16 in
Specifications Output Rating
120.0 V CT at 0.85 A
Specifications Primary Frequency
50 Hz | 60 Hz

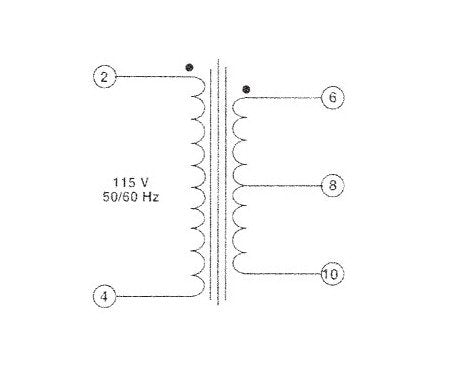

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
2.80 lb
Specifications Width W
2 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
